NACHI 5200ZZ 5200 ZZ BLT Angular Contact Ball Bearing

Product Description

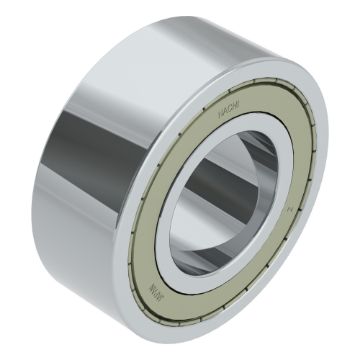

The NACHI 5200ZZ Angular Contact Ball Bearing, MPN 5200ZZ, is a double-row bearing designed for high-performance applications. This bearing features a ten millimeter bore and a thirty millimeter outer diameter. It is an efficient solution for systems requiring support for both radial and axial loads in either direction.

• Double-row design improves compactness.
• Supports both dynamic and static loads effectively.
• Sealed for maintenance-free operation.

Product Highlights

The NACHI 5200ZZ is suitable for various applications including blowers and high-speed vacuum pumps. It is designed to handle significant loads while maintaining low noise levels and energy efficiency.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 5200
• Bore Diameter: 10 mm
• Outside Diameter: 30 mm
• Width: 14.3 mm
• Contact Angle: 20 deg
• Load Capacity: 7300 N Dynamic / 4000 N Static
• Maximum Speed: 18000 rpm Grease / 24000 rpm Oil
• Closure Type: Double Shield
• Cage Material: Pressed Steel
• Country of Origin: JP
