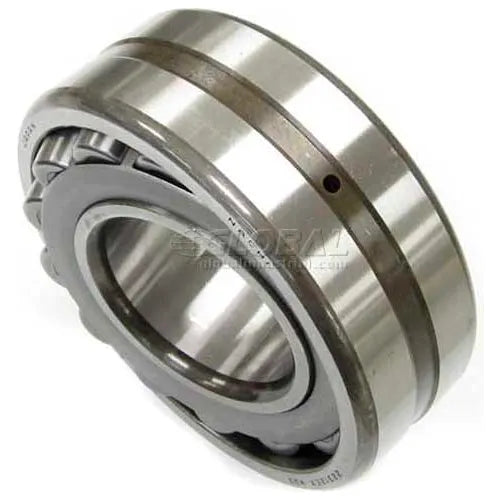

NACHI 22232EW33KC3 NAC Spherical Roller Bearing 160 MM Bore 290 MM OD

Product Description

The NACHI 22232EW33KC3 is a double-row spherical roller bearing designed for heavy-duty applications. Featuring a bore size of one hundred sixty millimeters and an outer diameter of two hundred ninety millimeters, this bearing offers robust performance in demanding environments.

• Operates effectively under misalignment conditions
• Supports high radial and axial loads
• Heat stabilized for temperatures up to four hundred degrees Fahrenheit

Product Highlights

This bearing is highly suitable for industries such as manufacturing, construction, and marine propulsion. Its design enables self-alignment, preventing excessive load on the bearing and extending its longevity.

Product Information

Standard Information

• Brand: NACHI
• Part Number: 22232EW33KC3

Technical Specifications

• Bore Diameter: 160 mm
• Outside Diameter: 290 mm
• Width: 80 mm
• Dynamic Load Rating: 1,230,000 N
• Static Load Rating: 1,330,000 N
• Max Speed with Grease: 1,200 rpm
• Max Speed with Oil: 1,500 rpm
• Material: Steel Alloy
• Cage Material: Pressed Steel
• Closure Type: Open
