NACHI 22222EXW33KC3 Spherical Roller Bearing 110 mm Bore 200 mm OD

Product Description

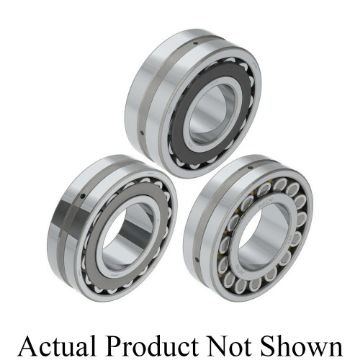

The NACHI 22222EXW33KC3 is a spherical roller bearing designed for high axial and radial load applications. This bearing features a bore diameter of one hundred ten millimeters and an outer diameter of two hundred millimeters. Its double-row configuration allows for excellent performance in demanding industrial conditions.

• Suitable for heavy-duty machinery.
• Open closure type for easy maintenance.
• Efficient in misaligned conditions.

Product Highlights

This spherical roller bearing operates effectively in harsh environments, handling extreme loads and vibrations.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 22200
• Bore Diameter: 110 mm
• Outside Diameter: 200 mm
• Width: 53 mm
• Number of Rows: 2
• Load Capacity: 680000 N Dynamic, 640000 N Static
• Maximum Speed: 2600 rpm Grease, 3200 rpm Oil
• Temperature Rating: 400 deg F
• Cage Material: Pressed Steel
• Bearing Material: Steel Alloy
• Closure Type: Open
