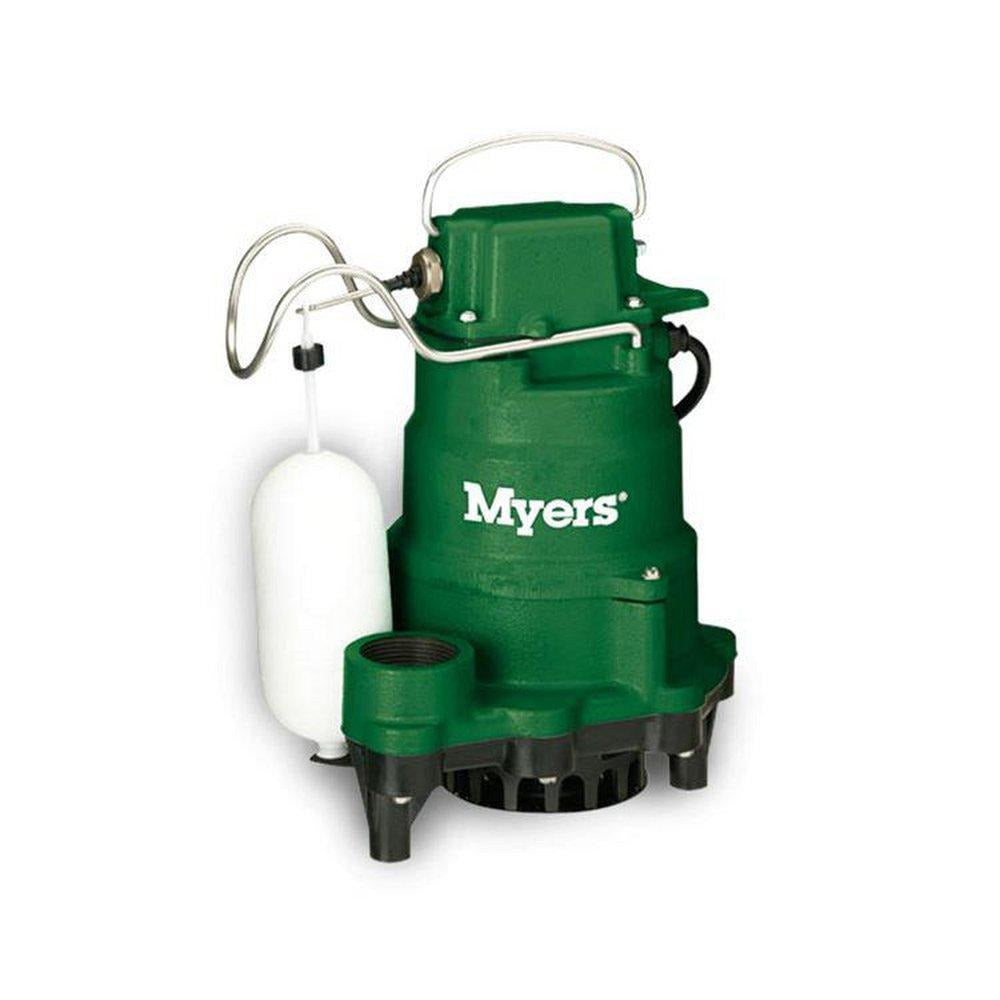

Myers mci033 Cast Iron Submersible Sump Pump 1/3 Hp

Product Description

The MYERS mci033 is a 1/3 horsepower cast iron submersible sump pump designed for residential and light commercial sump applications operating on 115 volts. Rated at 9.8 amps with a maximum head of 32 feet, this pump delivers reliable performance in demanding wet pit environments. The oil-cooled motor provides continuous bearing lubrication and maximizes heat dissipation, while lubricated ball bearings and a carbon/ceramic shaft seal extend service life. A heat sensor overload with automatic reset protects the motor during thermal events. Licensed plumbers and mechanical contractors are the typical installers for this class of equipment.

The mci033 is suited for residential and light commercial sump pits with a minimum diameter of 10 inches, made possible by its 2-pole switch design. The shaded pole motor eliminates failure-prone switches and relays, reducing callback risk. The 1-1/2 inch discharge port connects to standard sump discharge piping, and the 10-foot power cord reaches most nearby receptacles without an extension. An anti-airlock hole in the base reduces priming labor on initial installation or reinstall. The pump intake screen, volute base, switch, and power cord are all field-serviceable components, supporting long-term maintainability.

Key Features

• Oil-cooled motor with continuous bearing lubrication for extended service life
• Long-life carbon/ceramic seal protects motor against water intrusion
• 2-pole switch design supports operation in sump pits 10 inches or larger in diameter
• Shaded pole motor eliminates relays and mechanical switches prone to failure
• Thermal overload protection with automatic reset when motor returns to safe operating temperature
• Anti-airlock hole in base reduces installation and reinstallation labor
• Field-serviceable intake screen, volute base, switch, and power cord

Compatibility

Designed as an OEM-style replacement or new-installation submersible sump pump for residential and light commercial sump pits with a minimum inside diameter of 10 inches and standard 1-1/2 inch discharge piping.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the applicable provisions of the IPC. Disconnect power at the breaker before lowering the pump into the pit or performing any service. Verify that the discharge check valve is installed correctly and that discharge piping is properly supported to prevent stress on the pump body. Do not run the pump dry, as motor cooling depends on submersion in water.
