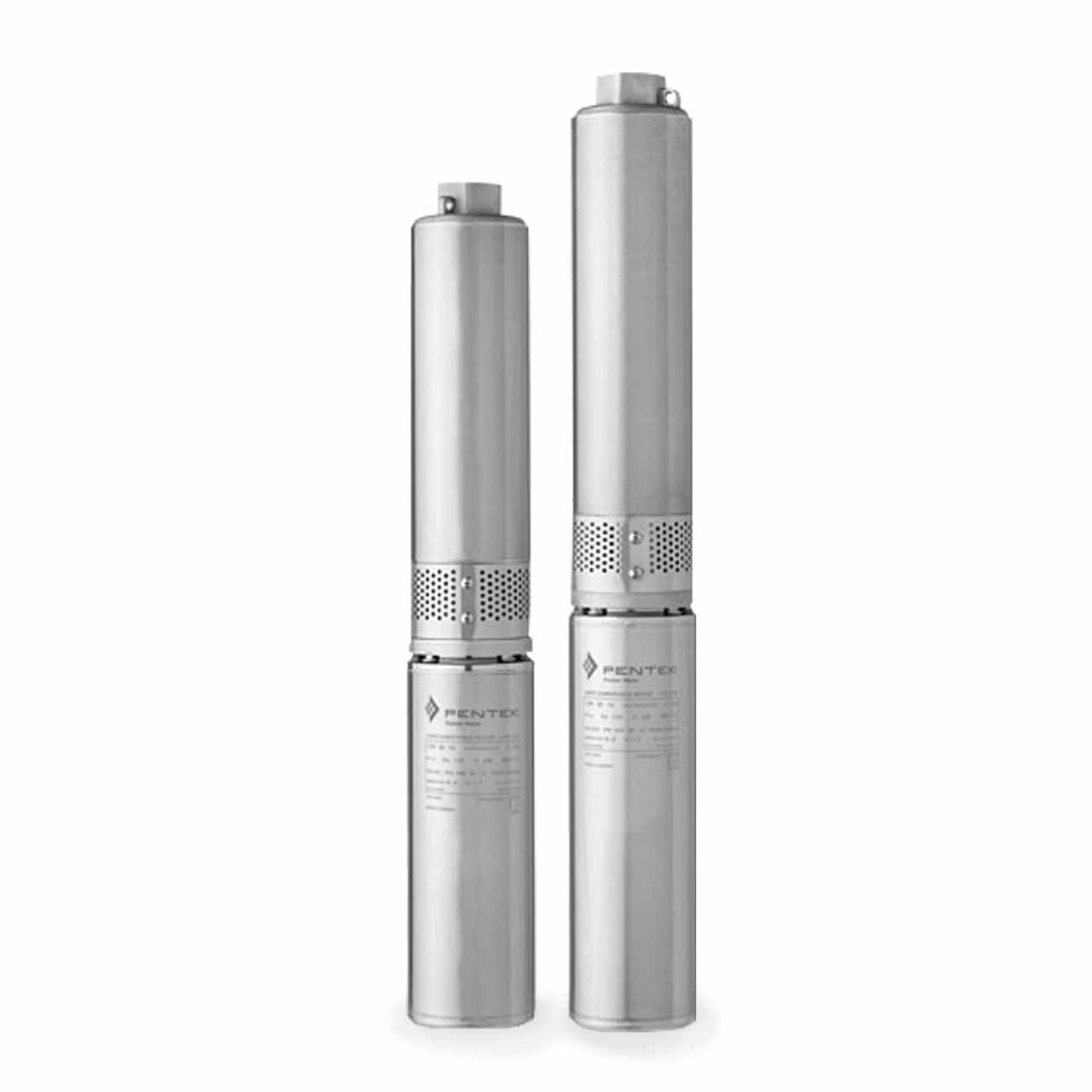

MYERS 2ST52-5PLUS-P4 Submersible Predator Plus Series Pump 0.5 HP 5 GPM

Product Description

The Myers 2ST52-5PLUS-P4 is a submersible pump designed for reliable performance in various water systems. It features a powerful 0.5 HP motor that is efficient and durable, ideal for residential, industrial, and commercial applications.

• Constructed with stainless steel for durability.
• Self-lubricating impellers resist wear from sand and grit.
• High-thrust PENTEK XE motor enhances performance and longevity.

Product Highlights

This pump is suitable for diverse uses, including agriculture and clean water systems.

Product Information

Standard Information

• Body Construction: 300 Stainless Steel
• Horsepower: 0.5 HP

Technical Specifications

• Voltage: 230V
• Full Load Amps: 4.7
• Lead: 2-Wire
• Discharge Size: 1.25 inches NPT
• Nominal Flow Rating: 5 GPM
• Maximum Capacity: up to 9 GPM
• Maximum Head: up to 405 ft.
• Stages: 11
• Impeller Design: Floating Stack
• Impeller Material: Engineered Composite
• Applicable Standard: NSF/ANSI 61, UL 778, CSA 108
• Casing Material: Stainless Steel
• Flow Rate: 5 GPM
• Housing Material: Stainless Steel
• Input Supply Rating: 230 Volt AC at 60 Hertz 1-Phase
• Motor Type: High-Thrust
• Overall Dimensions: 3.78 Inch Diameter x 22-1/2 Inch Length
• Power Rating: 1/2 HP
• Screen Material: 300 Series Stainless Steel
• Shaft Material: 300 Series Stainless Steel
• Type: 2-Wire, 11-Stage
• Warranty: 12 Month from Date of Original Installation, 18 Month from Date of Manufacture
