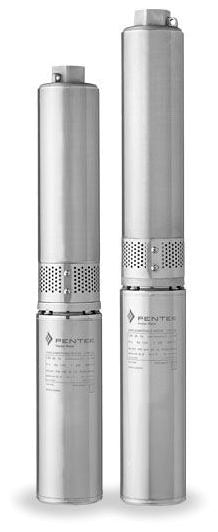

MYERS 2ST102-8PLUS-P4 Submersible Predator Plus Series Pump 1.0 HP 8 GPM

Product Description

The Myers 2ST102-8PLUS-P4 is a submersible pump designed for various clean water applications. With a power of 1.0 HP, it can handle a flow rate of eight gallons per minute, making it suitable for residential and commercial uses.

• Stainless steel construction ensures durability and longevity.
• Self-lubricating impellers resist wear from sand and grit.
• High-thrust PENTEK XE motor provides efficiency and performance.

Product Highlights

This pump is field serviceable and designed for safety with a built-in eyelet for a safety line connection. It meets various standards, ensuring compliance and reliability for your pumping needs.

Product Information

Standard Information

• Body Construction: 300 Stainless Steel
• Horsepower: 1.0 HP

Technical Specifications

• Voltage: 230V
• Full Load Amps: 9.1
• Lead: 2-Wire
• Discharge Size: 1.25 inches NPT
• Nominal Flow Rating: 8 GPM
• Maximum Capacity: up to 12 GPM
• Maximum Head: up to 600 ft.
• Stages: 15
• Impeller Design: Floating Stack
• Impeller Material: Engineered Composite
• Applicable Standard: NSF/ANSI 61, UL 778, CSA 108
• Casing Material: Stainless Steel
• Overall Dimensions: 3.78 Inch Diameter x 29-1/2 Inch Length
• Power Rating: 1 HP
• Screen Material: 300 Series Stainless Steel
• Shaft Material: 300 Series Stainless Steel
• Type: 2-Wire, 15-Stage
• Warranty: 12 Month from Date of Original Installation, 18 Month from Date of Manufacture
• Lead Law Compliant: Yes
