Multiple IBC200L4AC 2IN Grounding Bushing Insulated 150C 1 To 8 AL Lug

Product Description

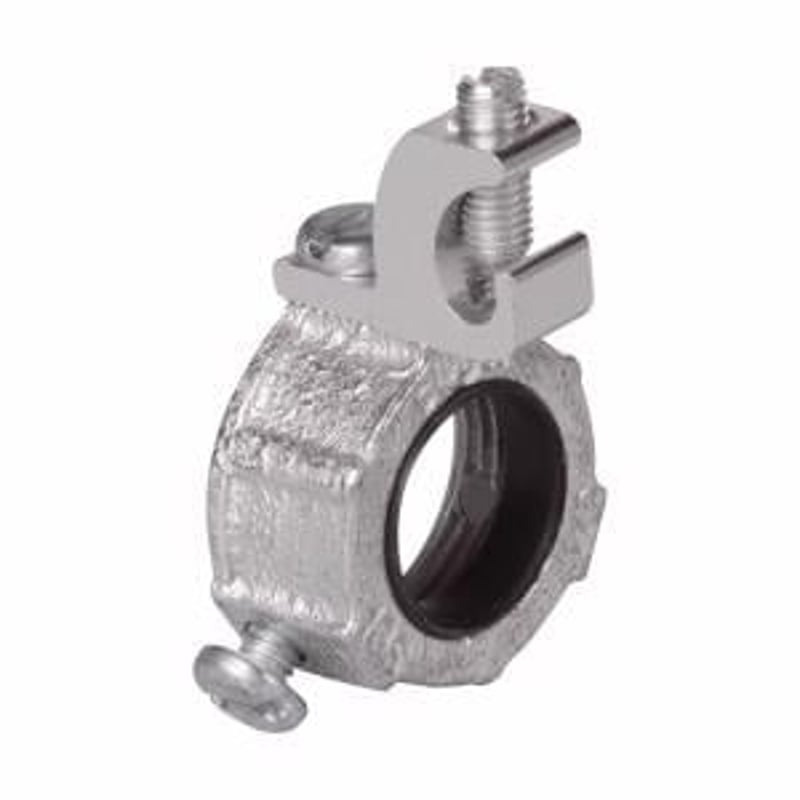

The Multiple IBC200L4AC is a 2 inch grounding bushing designed for use with rigid and IMC conduit. This grounding bushing features an insulated design with a temperature rating of one hundred fifty degrees Celsius. It includes an aluminum lug compatible with number four to fourteen AWG conductors. It is made from malleable iron and comes with a durable plastic throat liner, ensuring resistance to corrosion and other environmental factors.

• Grounding bushing rated for use with both rigid and IMC conduit
• Includes aluminum lug for number four to fourteen AWG conductors
• Temperature rating of up to one hundred fifty degrees Celsius

Product Highlights

This grounding bushing is essential for providing a secure grounding point in various commercial and institutional building applications.

Product Information

Standard Information

• Brand: Multiple
• MPN: IBC200L4AC

Technical Specifications

• Type: Grounding bushing
• Application: Commercial / Institutional Buildings / Structures
• Dimensions: 2.7500 inches x 2.7500 inches x 0.8800 inches
• Finish: Zinc Plated
• Material: Malleable Iron Body, Plastic Throat Liner
• Trade Size: 2 inches
• UNSPSC: 39121312
• Special Features: With 14 To 4 AWG Aluminum Lug for Copper/Aluminum Grounding Conductor
