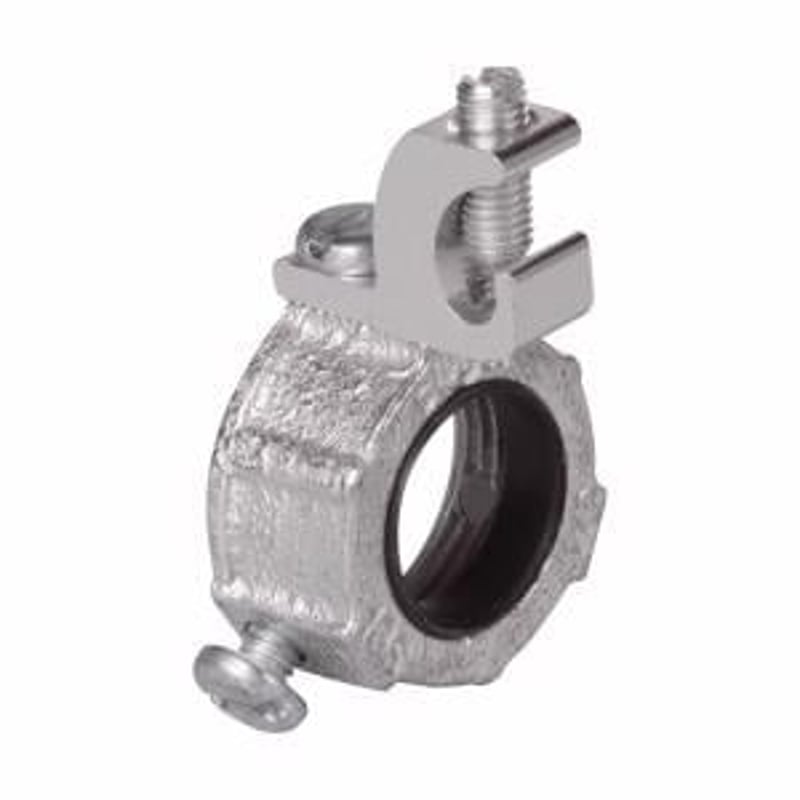

Multiple HGLL8 3IN Grounding Bushing Insulated 150C 1 To 8 AL Lug

Product Description

The Eaton Crouse-Hinds series HGLL8 is a three-inch grounding bushing designed for reliable grounding solutions in commercial and institutional buildings. This grounding bushing allows for connections for aluminum lugs, accommodating wire sizes from #1/0 to #8 AWG. Constructed with malleable iron and a plastic throat liner, it resists wear and corrosion, ensuring longevity in demanding environments.

• Rated for use in temperatures up to 150 degrees Celsius.
• Threaded design for easy installation with rigid or IMC conduit.
• Includes an aluminum lug for efficient grounding connections.

Product Highlights

The HGLL8 is ideal for electrical installations that require grounded conduit systems. It features robust construction and a practical design, making it suitable for various commercial applications.

Product Information

Standard Information

• Trade Size: 3 IN
• Brand Name: Eaton

Technical Specifications

• Material: Malleable Iron Body, Plastic Throat Liner
• Finish: Zinc Plated
• Temperature Rating: 150 Deg C
• Application: Commercial / Institutional Buildings / Structures
• Connection: Threaded, Set Screw
• Dimensions: 4.0000 IN X 4.0000 IN X 1.0000 IN
• Product Feature: 150° rated, Resilient plastic liner
• Special Features: With 8 To 1/0 AWG Aluminum Lug
