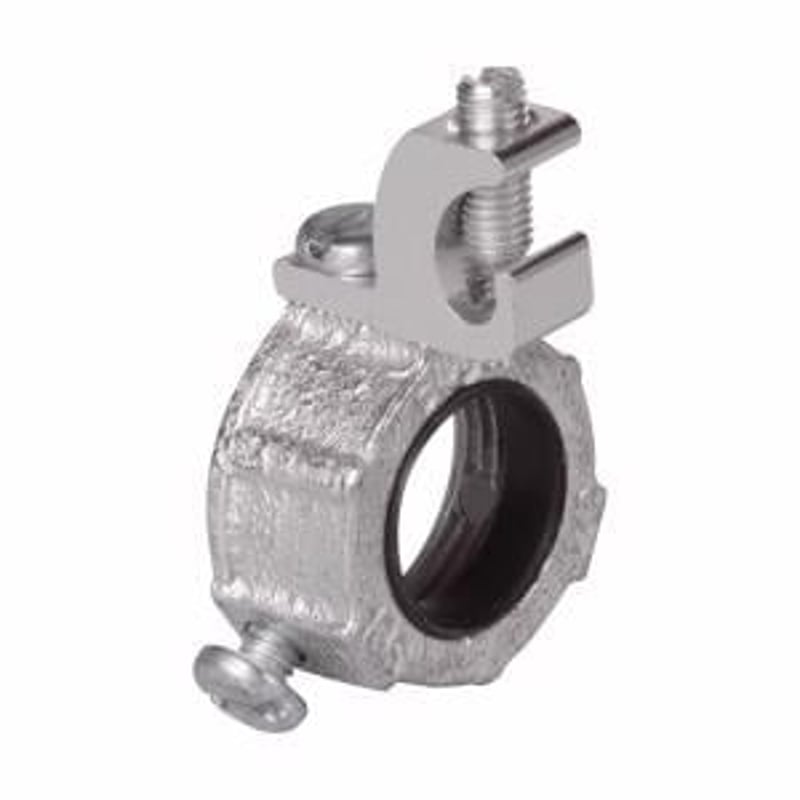

Multiple HGLL610 2IN Grounding Bushing Insulated 150C 1 To 8 AL Lug

Product Description

The Multiple HGLL610 is a grounding bushing designed for use in rigid and intermediate metal conduit applications. This 2-inch bushing features a malleable iron body with an aluminum lug suitable for wire gauges from #1/0 to #8 AWG. It supports a temperature rating of one hundred fifty degrees Celsius and is threaded for easy installation.

• Provides reliable grounding for conduit systems.
• Compatible with aluminum wiring.
• UL and cUL listed for safety and reliability.

Product Highlights

Standard use for commercial and institutional building grounding systems. Ensures compliance and reliability in electrical installations.

Product Information

Standard Information

• Brand: Multiple
• Sub Brand: Crouse-Hinds series

Technical Specifications

• Product Type: Grounding bushing
• Size: 2 IN
• Material: Malleable iron body with plastic throat liner
• Connection: Threaded, set screw
• Dimensions: 2.7500 inches x 2.7500 inches x 0.8800 inches
• Temperature Rating: 150 Deg C
• UNSPSC: 39121312
• Box Quantity: 10
