Multiple HGLL4 1 1/4IN Grounding Bushing Insulated 150C 4-14 AL Lug

Product Description

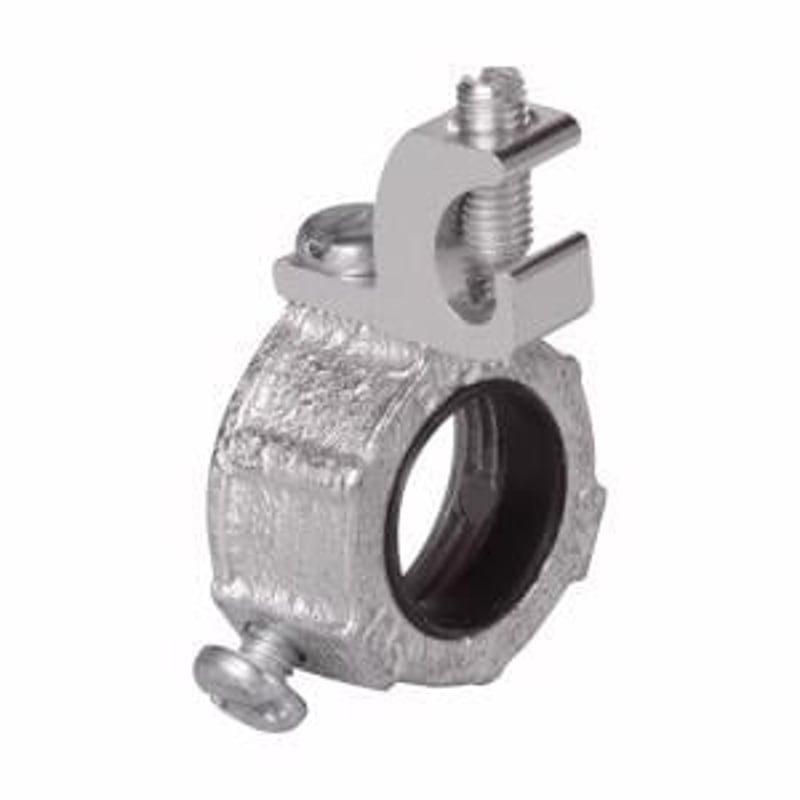

The Eaton Crouse-Hinds series HGLL4 grounding bushing is designed for use with rigid and intermediate metal conduit (IMC). This bushing supports grounding applications with aluminum lugs for wire sizes ranging from #4 to 14 AWG. It is made from durable malleable iron and is rated for temperatures up to 150 degrees Celsius. The product features a threaded design that ensures a secure fit, allowing for reliable grounding in various electrical installations.

• Grounding bushing supports wire sizes #4-14 AWG.
• Constructed from malleable iron with a plastic throat liner.
• Compatible with threaded and threadless conduits for versatile installation.

Product Highlights

The HGLL4 bushing is ideal for commercial and institutional buildings, providing a robust solution for safe grounding connections.

Product Information

Standard Information

• Brand: Eaton
• Sub Brand: Crouse-Hinds series

Technical Specifications

• Product Type: Grounding bushing
• Trade Size: 1 1/4 IN
• Temperature Rating: 150 Deg C
• Connection: Threaded, Set Screw
• Material: Malleable Iron Body, Plastic Throat Liner
• Finish: Zinc Plated
• Dimensions: 2.0000 IN X 2.0000 IN X 0.8100 IN
• Box Quantity: 25
