Multiple HGLL10250 4IN Grounding Bushing Insulated 150C 250MCM-6 AL Lug

Product Description

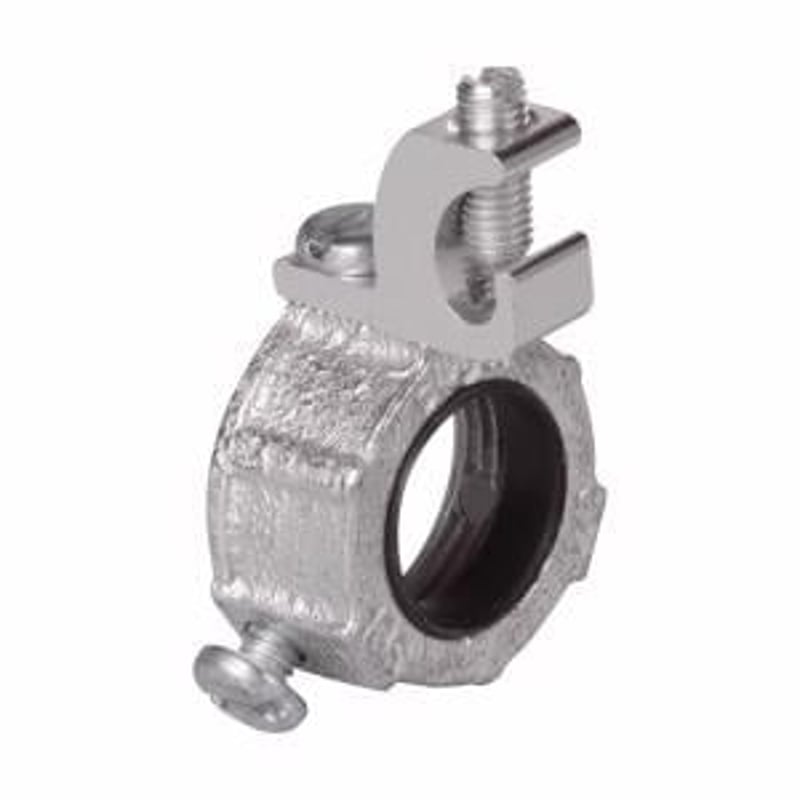

The Eaton Crouse-Hinds series HGLL grounding bushing, model HGLL10250, is designed for grounding applications in various electrical setups. This product features a rigid structure suitable for rigid/IMC conduits. It is made with an aluminum lug compatible with sizes ranging from 250 kcmil to #6 AWG, ensuring versatility for different installations.

• Thickness of 4 inches for secure fitting
• Temperature rated to 150 degrees Celsius
• Constructed from malleable iron for durability

Product Highlights

This grounding bushing provides excellent electrical connectivity while resisting corrosion and chemicals. Its threaded design allows for easy installation in various environments.

Product Information

Standard Information

• Brand: Eaton
• Part Number: HGLL10250

Technical Specifications

• Type: Grounding bushing
• Connection: Threaded, Set Screw
• Dimensions: 5.0600 inches x 5.0600 inches x 1.1300 inches
• Material: Malleable Iron Body, Plastic Throat Liner
• Finish: Zinc Plated
• Standard: UL, cUL
• Trade Size: 4 inches
• Temperature Rating: 150 degrees Celsius
