Multiple HGLL1 1/2IN Grounding Bushing Insulated 150C 4 To 14 AL Lug

Product Description

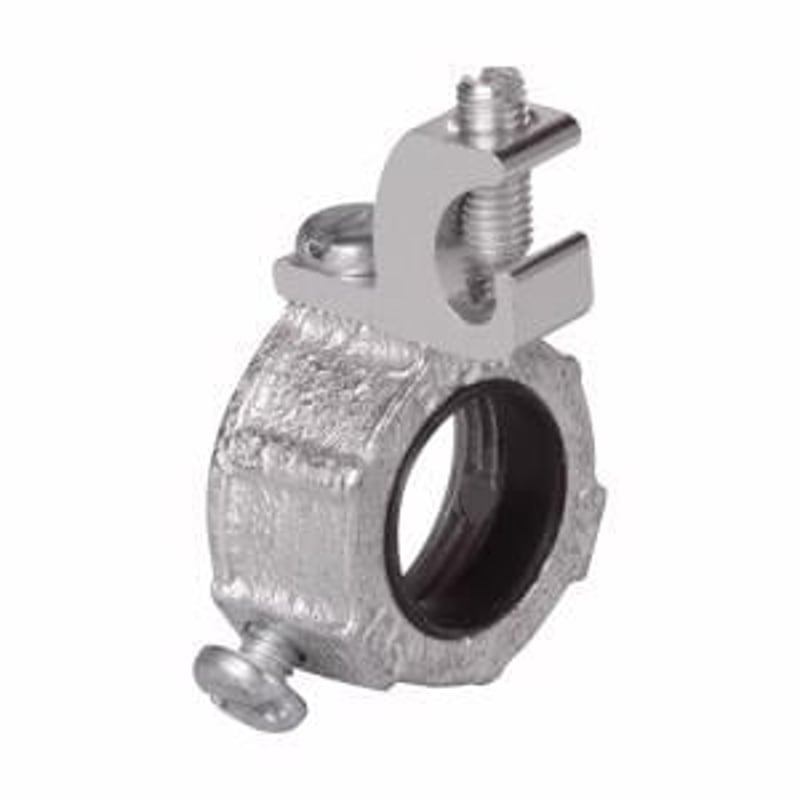

The Eaton Crouse-Hinds series HGLL grounding bushing (MPN: HGLL1) is designed for reliable electrical grounding in rigid and intermediate metal conduit systems. This product is made to accommodate aluminum lugs for wire sizes ranging from #4 to #14 AWG. The grounding bushing is constructed from malleable iron and has a temperature rating of one hundred fifty degrees Celsius. It features a threaded connection for secure installation.

• Designed for use with aluminum lugs #4-14 AWG
• Constructed from malleable iron with a plastic throat liner
• Temperature rated at one hundred fifty degrees Celsius

Product Highlights

This grounding bushing provides a secure connection point for grounding in commercial and institutional buildings.

Product Information

Standard Information

• Brand: Eaton
• Type: Grounding bushing

Technical Specifications

• Size: 1/2 IN
• Material: Malleable Iron Body, Plastic Throat Liner
• Finish: Zinc Plated
• Trade Size: 1/2 IN
• Connection: Threaded, Set Screw
• Dimensions: 1.0600 IN X 1.0600 IN X 0.6900 IN
• Standards: UL, CSA
• Product Feature: With 14 To 4 AWG Aluminum Lug for Copper/Aluminum Grounding Conductor
• Box Quantity: 50
