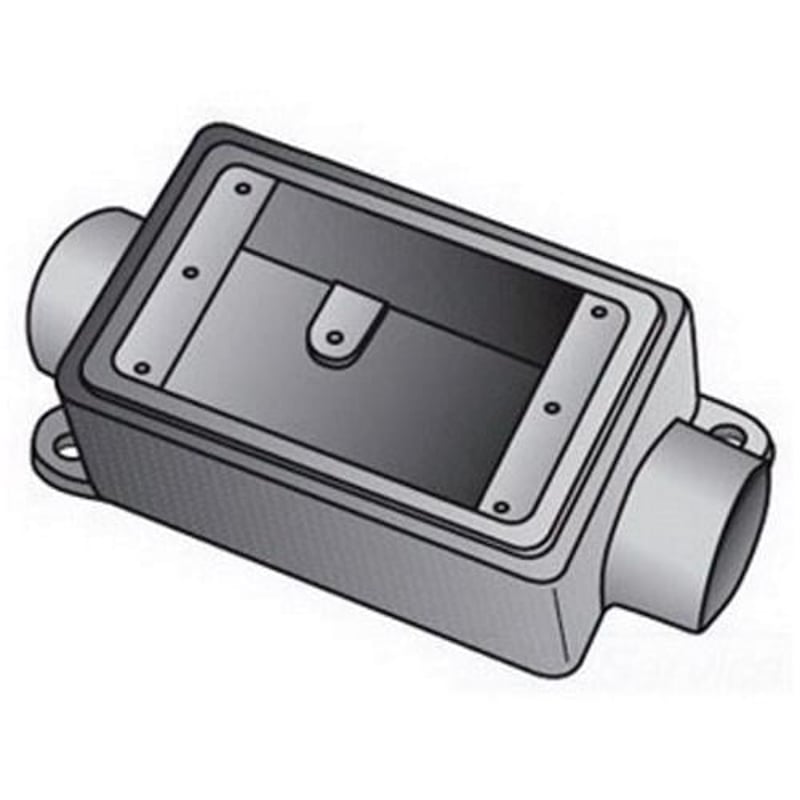

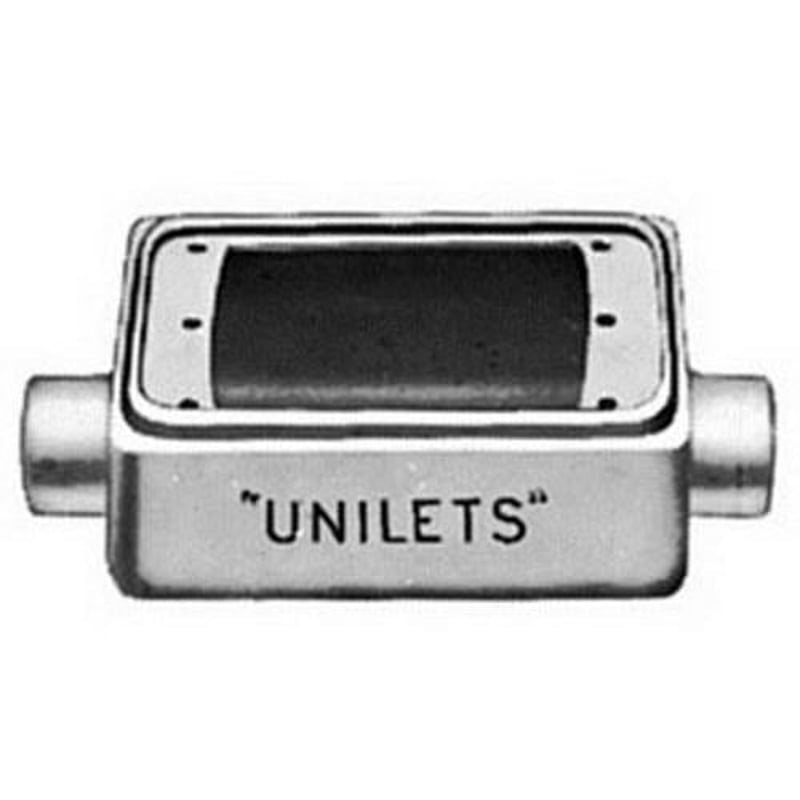

Multiple APPFDC175 3/4IN 1 Gang Malleable Iron 1 Hub FD Box

Product Description

The Multiple APPFDC175 is a 3/4 inch 1 gang malleable iron device box designed for reliable performance. This product features a cubic capacity of twenty-five cubic inches and is suitable for use with threaded metal conduit and IMC. The box accommodates two outlet connections through its two three-quarter inch hubs without any knockouts. It is ideal for various applications in electrical installations.

• Material: Malleable Iron
• Number of Outlets: 2
• Dimensions: Height - 4.56 inches, Width - 2.81 inches, Depth - 2.69 inches

Product Highlights

This device box provides ground continuity and is constructed to ensure a positive cover and gasket fit, enhancing durability and reliability in outdoor and indoor environments.

Product Information

Standard Information

• Brand: Multiple
• MPN: APPFDC175

Technical Specifications

• Construction: Ridge Top
• Cable Entry: (2) 3/4 IN Hub
• Cubic Capacity: 25 CU-IN
• Knockouts: No
• Compliance Standards: UL 514 A, CSA C22.2 No. 18.1
• Trade Size: 3/4 IN
• Number of Outlets: 2
• Application: For use with threaded metal conduit and IMC
