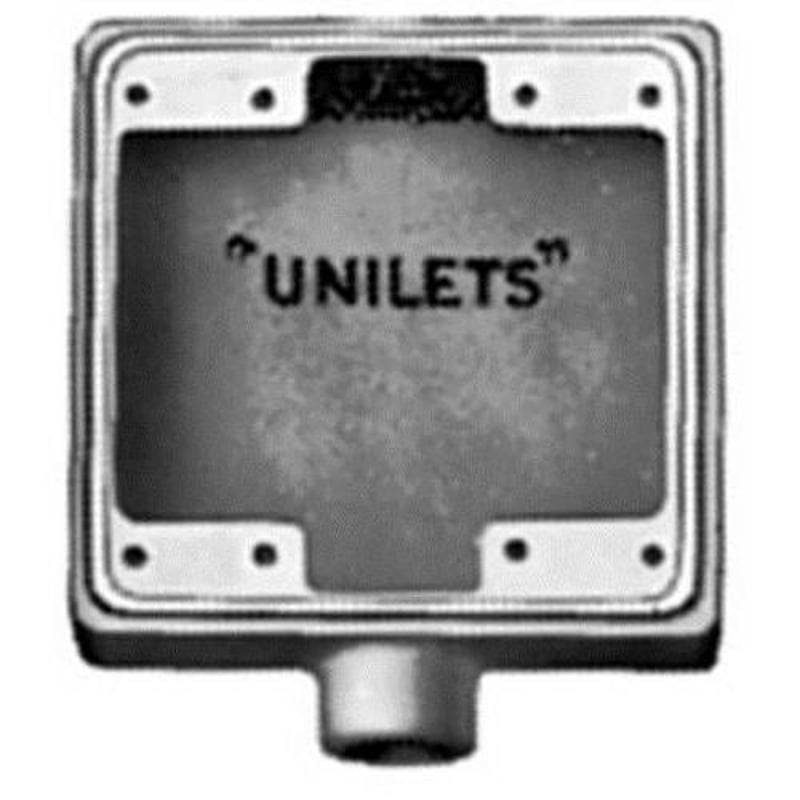

Multiple APPFD2100 1IN 2 Gang Malleable Iron 1 Hub FD Box

Product Description

The Multiple APPFD2100 is a 1 inch 2 gang malleable iron device box. It has one outlet and is designed for use with threaded metal conduit and IMC. The cubic capacity is forty-five cubic inches. This device box does not have knockouts, which is beneficial for certain installations. It measures four point six three inches in height, four point six three inches in width, and two point six nine inches in depth.

• Material: Malleable Iron
• Cable Entry: One hub
• Standards: UL 514 A

Product Highlights

This device box is renowned for its durability and strength, making it suitable for both indoor and outdoor electrical installations.

Product Information

Standard Information

• Brand: Multiple
• MPN: APPFD2100

Technical Specifications

• Type: FD Deep Depth 2-Gang Cast Device Box
• Cable Entry: (1) 1 IN Hub
• Material: Malleable Iron
• Height: 4.63 IN
• Width: 4.63 IN
• Depth: 2.69 IN
• Cubic Capacity: 45 CU-IN
• Knockouts: No
• Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
• Standards: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
