Multiple 962631621 MWC A50088PNK CAT5E 24/4PR PINK PVCBOX CLM 96263-16-11OR GEN 5078-11-11

Product Description

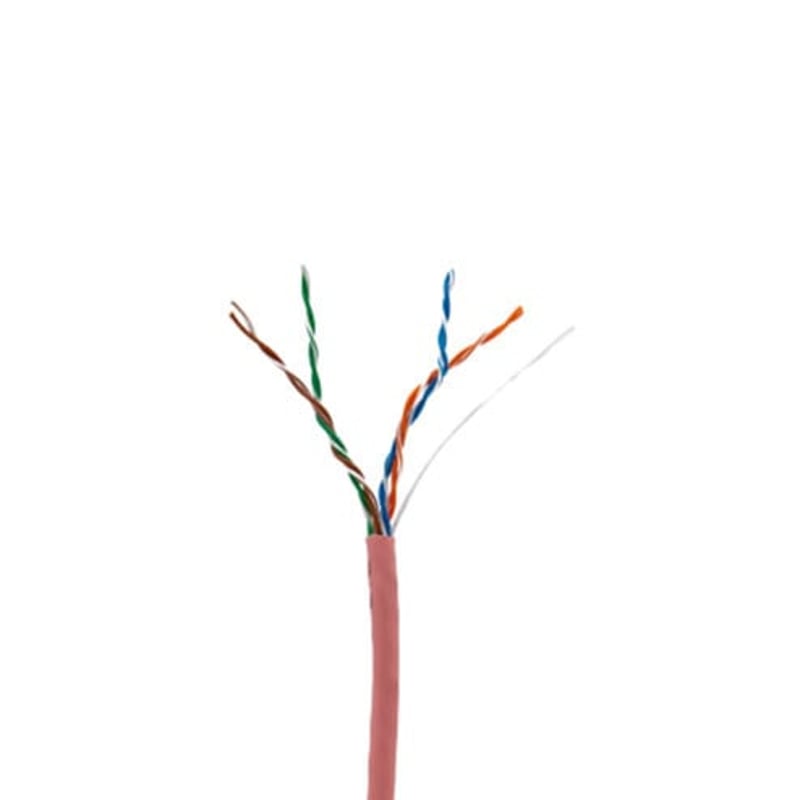

The Multiple 962631621 is a CAT5E unshielded twisted pair data cable designed for various applications. It operates effectively within a frequency range of one to three hundred fifty MHz, making it suitable for commercial and residential use, including office phone, fax, and internet systems.

• High frequency range suitable for fast data transmission
• Constructed with solid bare copper conductors
• Four pairs of conductors for reliable connectivity

Product Highlights

This cable features a pink PVC jacket rated for CMR. The total length of the cable is one thousand feet, packaged in a reel for easy handling.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 10469

Technical Specifications

• Operating Frequency: 1 to 350 MHz
• Attenuation: 4.3 dB/100 M at 155 MHz
• DC Resistance: 9.38 Ohm/100 M
• Capacitance: 5.6 Nanofarad/100 M
• Conductor Size: 24 AWG
• Cable Outer Diameter: 0.185 Inch
• Number of Conductor Pairs: 4
• Jacket Rating: CMR
• Jacket Color: Pink
• Insulation Material: PE
• Length: 1000 Ft
