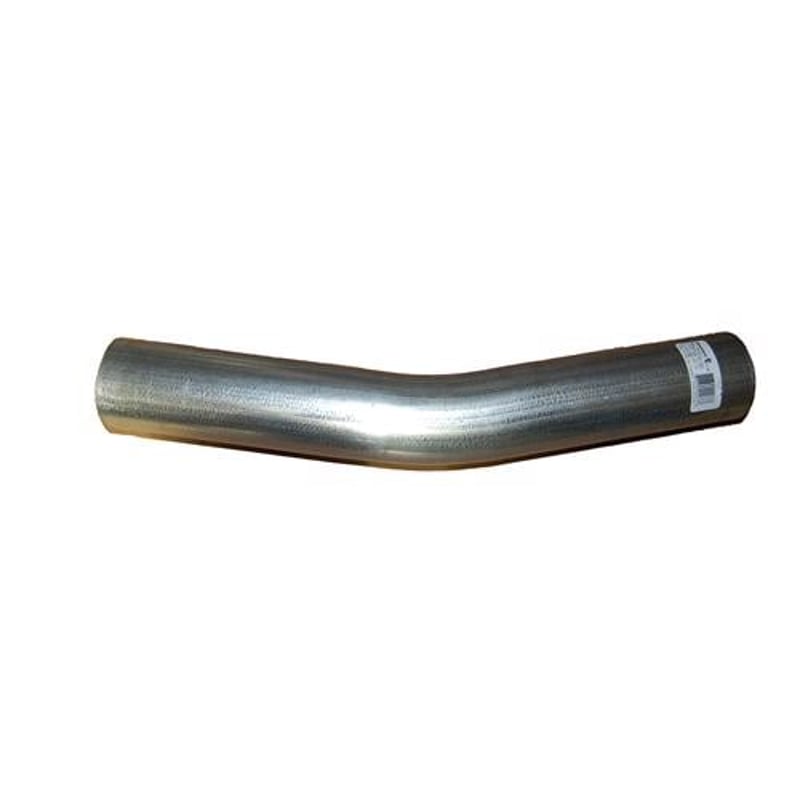

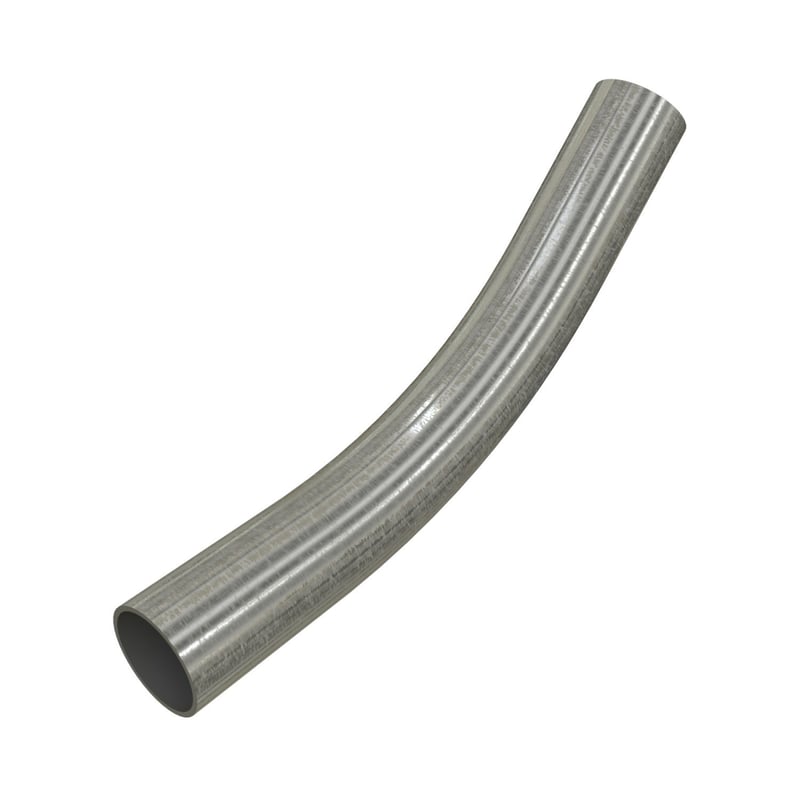

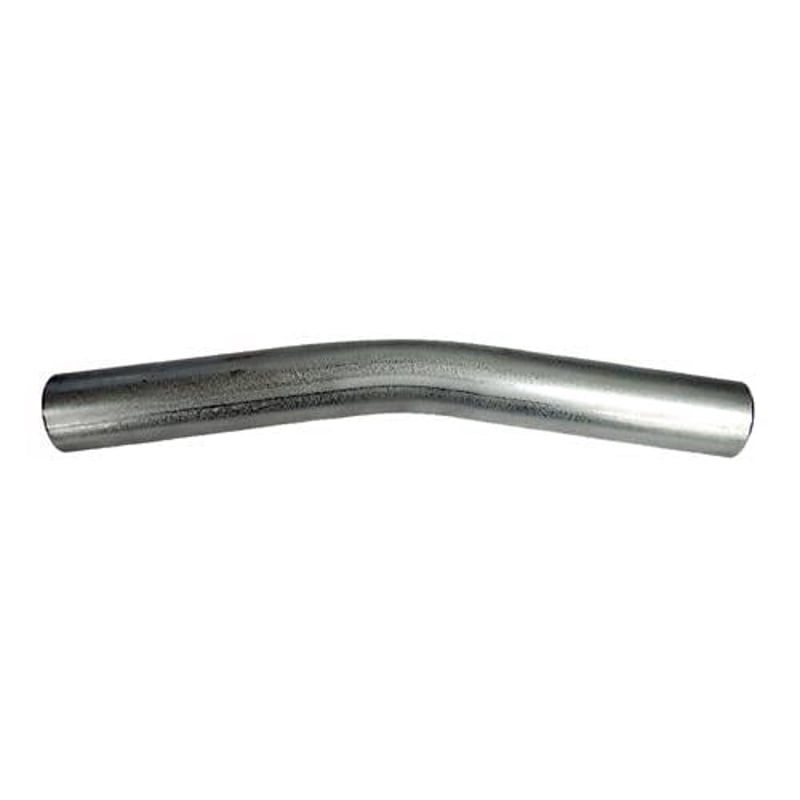

Multiple 8271 4IN EMT Elbow 22-1/2 Degrees

Product Description

The Multiple 8271 is a four-inch electrical metallic tubing elbow with a bend of twenty-two and one-half degrees. This elbow is made from galvanized steel, offering high strength and durability for electrical installations.

• Constructed from hot galvanized steel for long-lasting performance
• Features E-Z Pull interior coating for smooth wire pulling
• Compliant with Underwriters Laboratories Safety Standard UL 797

Product Highlights

Designed to change the direction of a raceway in electrical systems, the Multiple 8271 is essential for effective conduit routing.

Product Information

Standard Information

• Part Number: 12917
• UPC: 09111102070

Technical Specifications

• Type: Elbow
• Material: Steel
• Finish: Galvanized
• Bend Radius: 22 1/2 degrees
• Wall Thickness: 0.083 inches
• Inside Diameter: 4.334 inches
• Outside Diameter: 4.500 inches
• Standard Compliance: UL797 & ANSI C80.3
