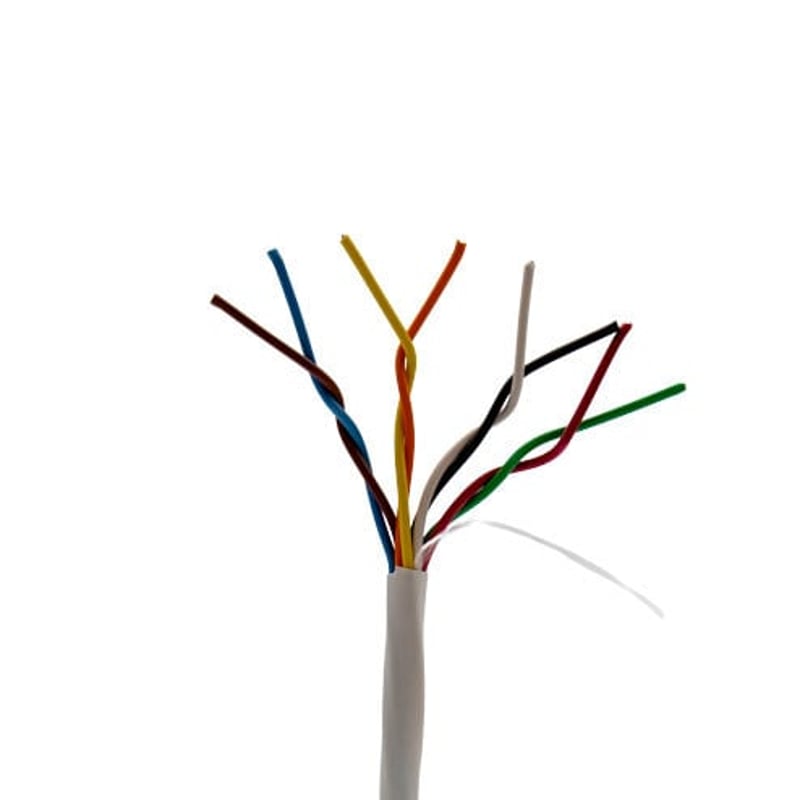

Multiple 719080623 MWC A30012 18/8 Unshielded Stranded Plenum White 1000 FT Reels

Product Description

Multiple 719080623 MWC A30012 18/8 Unshielded Stranded Plenum White 1000 FT Reels is a reliable communication cable designed for various applications. This unshielded electronic plenum cable is compliant with CMP/CL3P and CMP/FT6 standards. It features eight stranded conductors with a gauge of eighteen AWG, made from bare copper. The cable jacket and insulation material are both low smoke PVC, ensuring safety and minimal smoke emission in case of fire.

• Voltage rating of three hundred volts.
• Operating temperature range of negative twenty to seventy-five degrees Celsius.
• Outer diameter of zero point two two three inch.

Product Highlights

This cable is suitable for communication systems, intercoms, nurse calls, and various audio applications.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 25842

Technical Specifications

• Conductor Material: Bare Copper
• Insulation Material: Low Smoke PVC
• Number of Conductors: 8
• Conductor Size: 18 AWG
• Voltage Rating: 300 V
• Application: Communication, Intercom/P.A. System, Nurse Call
• Approvals: UL 13, UL 444
• Length: 1000 FT
• Outer Diameter: 0.223 Inch
• Temperature Rating: -20 to 75 Deg C
