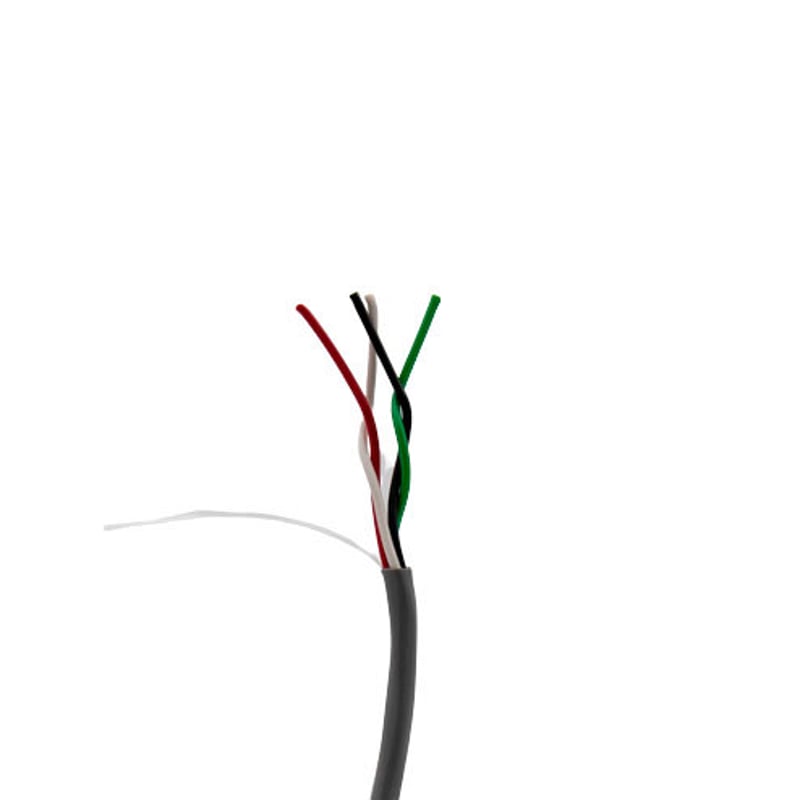

Multiple 511150609 MWC A20034 16/4 Unshielded Stranded Gray PVC 1000 FT Reels

Product Description

The Multiple 511150609 is a high-quality unshielded conductor cable designed for various communication applications. It is a type CMR/CL3R (UL) and CMG/FT4 (CUL), rated for a voltage of three hundred volts. This cable consists of four conductors made with sixteen AWG stranded bare copper, encased in a gray PVC jacket.

• Voltage Rating: 300 V
• Number of Conductors: 4
• Outer Diameter: 0.203 inches

Product Highlights

This cable is suitable for intercom systems, nurse call systems, remote control, and security systems. It is also compliant with UL 13 and UL 444 standards.

Product Information

Standard Information

• Type: CMR/CL3R (UL), CMG/FT4 (CUL)
• Conductor Size: 16 AWG

Technical Specifications

• Conductor Material: Bare Copper
• Insulation Material: Polypropylene/FR Polypropylene
• Jacket Material: PVC
• Length: 1000 FT
• Temperature Rating: -20 to 60 Deg C
• Color Code: Black, Red, White, Green
• Insulation Thickness: 0.006 inches
• Jacket Thickness: 0.017 inches
