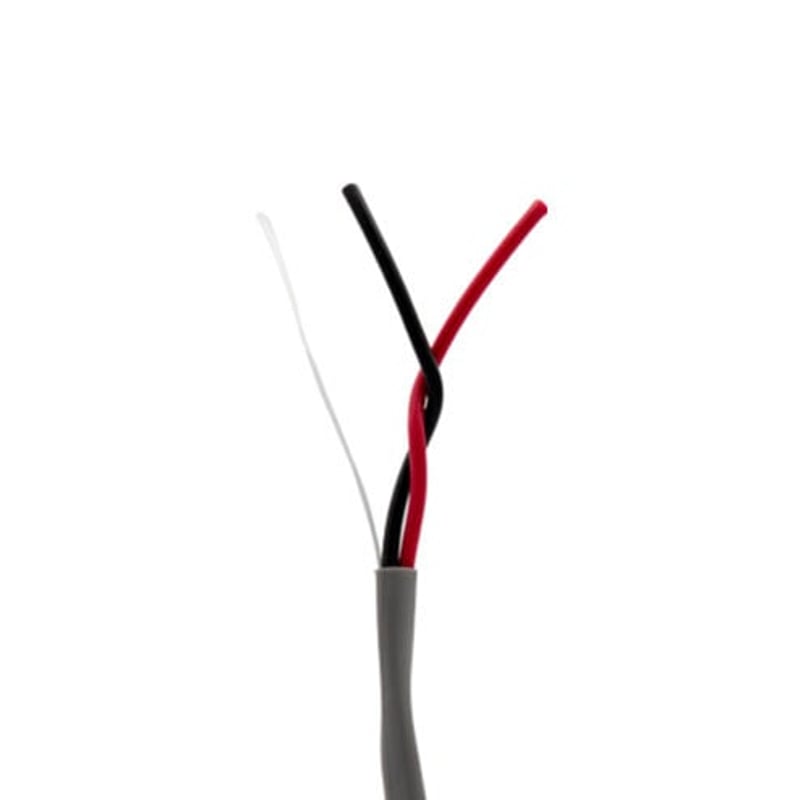

Multiple 511040609 MWC A20022PB 18/2 Unshielded Stranded Gray PVC 1000 FT Pull Box

Product Description

The Multiple 511040609 is an unshielded conductor cable designed for various communication applications. This cable features a type rating of CMR/CL3R (UL), making it suitable for riser use. With a voltage rating of 300 volts and two conductors, it is ideal for systems such as intercoms, nurse calls, and security systems.

• Conductor Size: 18 AWG Stranded
• Length: 1000 feet
• Outer Diameter: 0.142 inches

Product Highlights

This cable offers reliability for a range of low-voltage applications. The conductor is made of bare copper, with insulation that withstands temperatures from -20 to 60 degrees Celsius.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 13371

Technical Specifications

• Type: CMR/CL3R (UL), CMG/FT4 (CUL)
• Voltage Rating: 300 V
• Number of Conductors: 2
• Conductor Size: 18 AWG
• Conductor Material: Bare Copper
• Color Code: Black, Red
• Insulation Material: Polypropylene/FR Polypropylene
• Jacket Material: PVC
• Jacket Color: Gray
• Outer Diameter: 0.142 inches
• Length: 1000 feet
• Temperature Rating: -20 to 60 degrees Celsius
• Packaging Type: Rabbit Pull Pull-Box
