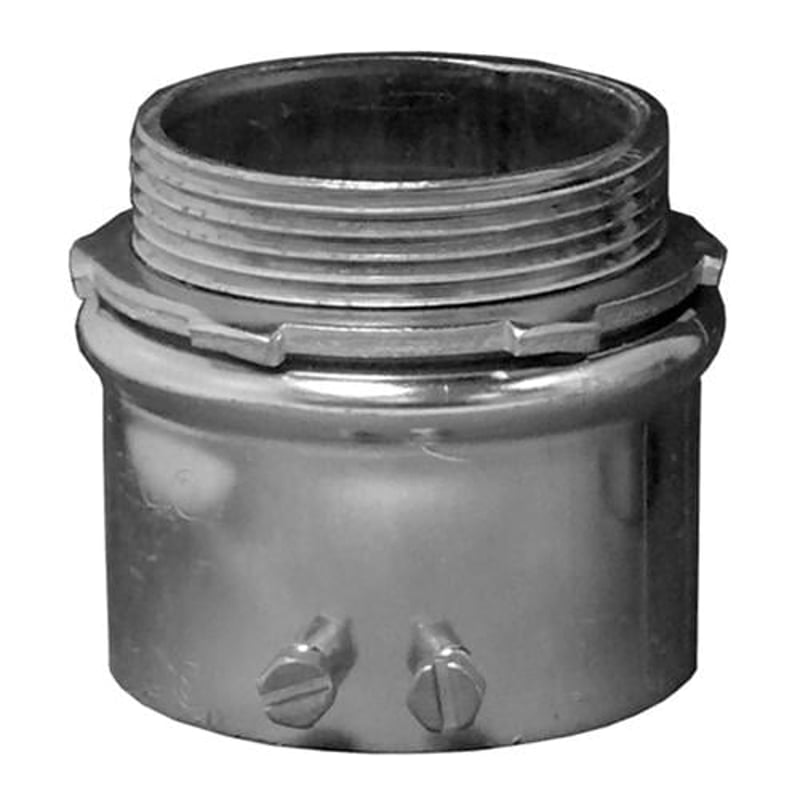

Multiple 4200S 2IN EMT Steel Set Screw Connector

Product Description

The Multiple 4200S is a 2 inch EMT steel set screw connector designed for securing and grounding EMT raceways to boxes and enclosures. This connector features a diameter of 2 3/16 inches and a length of 2 3/8 inches. Equipped with a 5/8 inch thread length, it meets several standards including UL 514B and CSA C22.2.

• Material: Steel with a zinc electroplated finish
• Connection Type: Male NPS Thread
• Pack Quantity: Sold in boxes of 5

Product Highlights

Designed for a secure fit with EMT conduits and rated for various safety standards. Ideal for electrical installations where reliable grounding is essential.

Product Information

Standard Information

• Brand: Multiple
• UPC: 68785584626

Technical Specifications

• Size: 2 inches
• Type: EMT Conduit Straight Set Screw Connector
• Material: Steel
• Finish: Zinc Electro Plated
• Thread Length: 0.63 inches
• NEMA Rating: FB-1
• Standard Compliance: UL 514B, CSA C22.2, NEMA FB-1
• Application: Used to ground and secure EMT raceways to boxes and enclosures
