Multiple 418-DC2 3IN Squeeze Flex Connector Zinc

Product Description

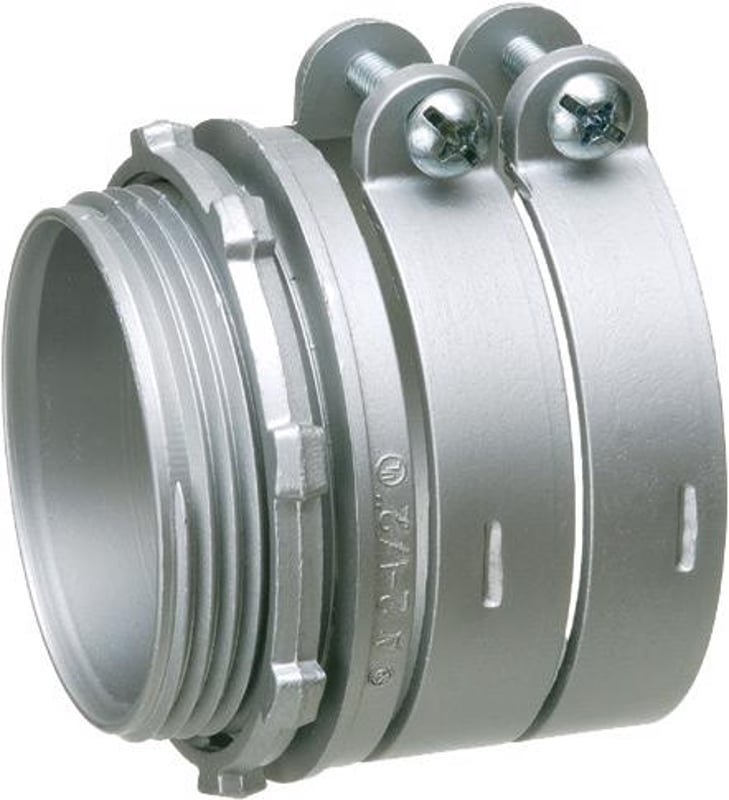

The Multiple 418-DC2 is a three-inch squeeze flex connector made from zinc die-cast. This connector features a two-screw design and comes with three knockout openings. It is suitable for use with Flex, AC, and MCI cables. The connector is designed to be concrete tight when taped, ensuring secure installation. The end stop diameter measures two point nine eight zero inches.

• Material: Zinc die-cast
• Connection type: Threaded X Squeeze
• Connector type: Squeeze

Product Highlights

This connector is reliable for various cable types and ensures a secure fit in tight spaces.

Product Information

Standard Information

• Brand: Multiple
• UPC: 01899734280

Technical Specifications

• Application: Flex AC MC Cable
• Size: L(4.373) x W(4.373) x H(3.870) inches
• Trade Size: 3IN
• Conductor Range: 3.17 to 3.56 mm
• Special Features: Concrete Tight, 3IN Knockout
• Certifications: UL, CSA
• Warranty: 1 Year Warranty Against Manufacturer Defects
• Box Quantity: 5
