Multiple 2105S42-00 12/3 MC Cable 120V 250 FT Coil

Product Description

The Multiple 2105S42-00 is a 12/3 MC cable designed for 120V applications. It features three conductors, which include solid copper ground and neutral wires. With a maximum voltage rating of six hundred volts and a temperature limit of ninety degrees Celsius, this cable is built to meet various electrical needs.

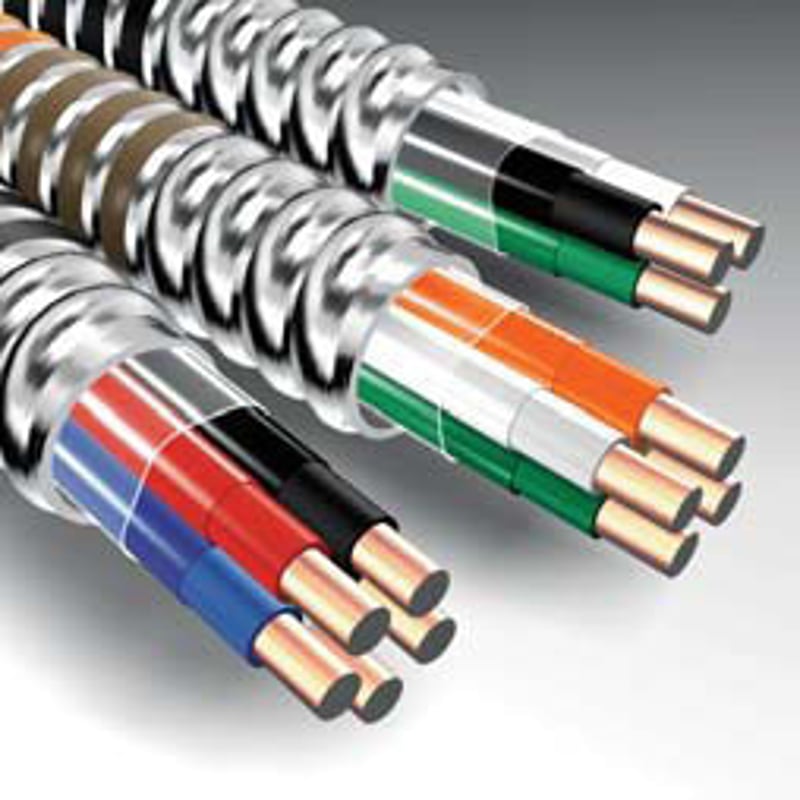

• Traditional design with an interlocking aluminum strip armor
• Includes THHN insulation and polypropylene tape shield
• Compliant with multiple UL and NEC standards

Product Highlights

This cable is suitable for both surface and embedded installations, making it versatile in different environments.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 8648

Technical Specifications

• Type: Traditional Type MC Cable with Ground and Neutral
• Conductor Size: 12 AWG
• Voltage Rating: 600V
• Outside Diameter: 0.53 IN
• Number of Conductors: 3
• Weight: 135 LB/1000 FT
• Color: Black, Red, White, Green
• Certification: RoHS Compliant, ISO 9001 Certified
