Multilink 065-101-10 Surelight, Multifiber Pigtail, Spiral Wrapped, Multimode, ST, PC, 12 Fibers, 900 μcm Buffer

Product Description

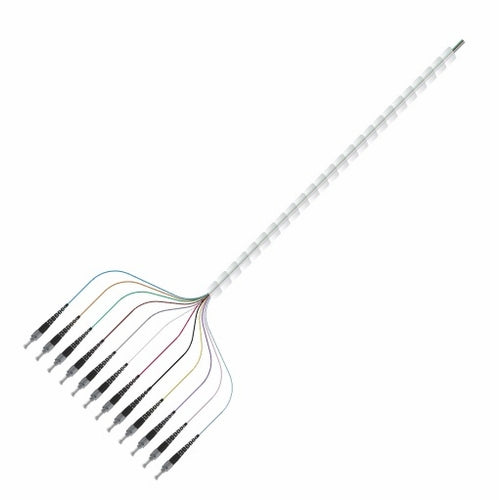

The MULTILINK 065-101-10 Surelight multifiber pigtail features a spiral-wrapped design and is suitable for multimode applications. It comes with ST connectors, a clear PC finish, and contains 12 fibers with a 900 μcm buffer. This pigtail is designed for use with PLC optical splitters.

• Spiral wrapped for enhanced durability
• Features ST connectors for secure connections
• Suitable for multimode fiber applications

Product Highlights

Multifiber pigtail with spiral wrapping, ST connectors, and a clear PC finish, designed for multimode applications.

Product Information

Standard Information

• Brand: MULTILINK
• Manufacturer Part Number: 065-101-10

Technical Specifications

• Color: Clear
• Finish: PC
• Fiber Type: Multimode
• Connector Type: ST
• Cable Type: (12) Multimode 900μm Simplex 62.5/125μm Tight Buffered Fiber OM1
• Type: Spiral Wrapped
• Series: Surelight
• Number of Fibers: 12
• Length: 3 m
• Outer Jacket Color: Natural
• Application: Riser Rated, Indoor Vertical, General Building Applications
• Nominal Outer Diameter: 6.35mm
• Cable Assesmbly Type: 12 Fiber Pigtail
• Flame Rating: Riser Rated OFNR
• Fiber Category: Multimode (OM1)
• Insertion Loss Typical: 0.20 dB
• Reflectance, Typical #1: < -45 dB
• Polish: UPC
• Housing Material: Metal
• Housing Color: Metal
• Boot Color: Black
• Ferrule Material: Zirconia
