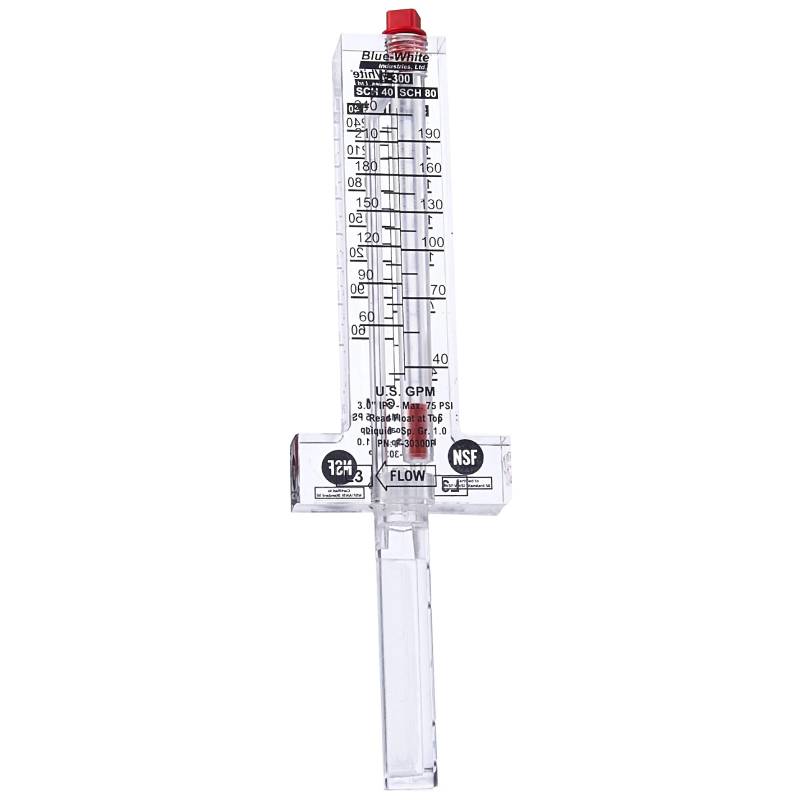

Mullarkey Associates F-30300P 3 Horizontal Flow Acrylic Flow Meter 45-240 GPM

Product Description

The Mullarkey Associates F-30300P is a three-inch horizontal flow acrylic flow meter made for use in closed pipe systems. It has a clear dual scale that shows flow readings in gallons per minute and liters per minute on both sides. This features helps users monitor flow rates easily from any side. This model is suitable for outdoor installations and includes a pitot tube for straightforward setup on existing piping.

• Suitable for closed pipe installations.
• Clear dual scale for easy reading (GPM / LPM).
• Designed for outdoor use with a durable acrylic body.

Product Highlights

This flow meter is designed for accurate flow measurement in liquid applications, especially for swimming pools and HVAC systems.

Product Information

Standard Information

• Brand: Mullarkey Associates
• Model Number: F-30300P

Technical Specifications

• Flow Meter Size: Three inches
• Body Material: Acrylic
• O-Ring Material: Neoprene
• Float Material: 316 Stainless Steel
• Maximum Pressure: Seventy-five PSI (5.17 bar) at seventy degrees Fahrenheit (21 degrees Celsius)
• Maximum Temperature: One hundred ninety degrees Fahrenheit (88 degrees Celsius) at zero PSI
• Flow Range: Forty-five to two hundred forty GPM
• Accuracy: Plus or minus ten percent
• Application State: Liquid
• Application Pipe Type: Schedule 40
• Pipe Size: Three inch IPS PVC
