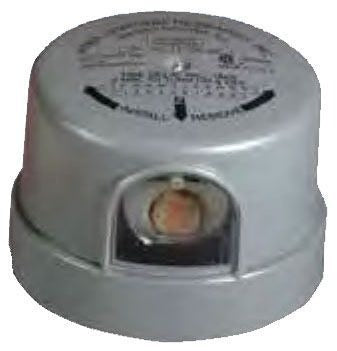

Mulberry Metal Products 30842 Photo Control 480 V (2.75 in x 3 in)

Product Description

Mulberry Metal Products 30842 is a locking-type photo control designed for automatic dusk-to-dawn switching of outdoor lighting. The device is rated for 480 V supply, uses a 1/2 inch cadmium sulfide light sensor, and features a UV-stabilized polycarbonate enclosure suitable for wet locations. It includes a built-in time delay to prevent false switching and provides surge protection and load ratings for tungsten and ballast applications.

• Supply voltage: 480 V; SPST switching with tungsten rating of 1000 W and ballast rating of 4000 VA.
• UV-stabilized polycarbonate (Noryl) locking enclosure for wet location use; meets NEMA locking-type standards.
• 1/2 in cadmium sulfide light cell with built-in time delay and 5000 V surge arrester rating.

Product Highlights

Locking-type photo control, 480 V operation, 1/2 in cadmium sulfide sensor, 1000 W tungsten / 4000 VA ballast, 5000 V surge protection.

Product Information

Standard Information

• Brand: MULBERRY METAL PRODUCTS
• Manufacturer Part Number: 30842
• Country of Origin: China
