Mulberry Metal Products 30587 Weatherproof Box 4-3/4 inches Hubs

Product Description

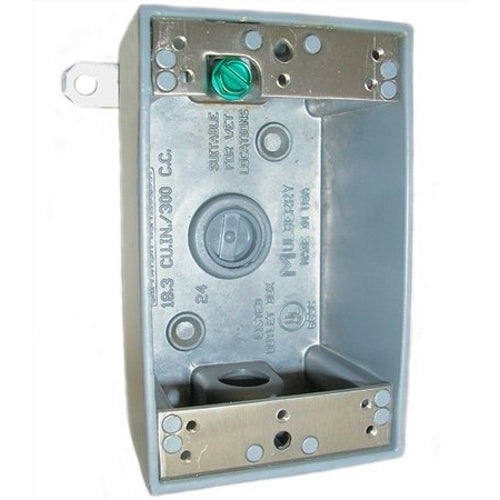

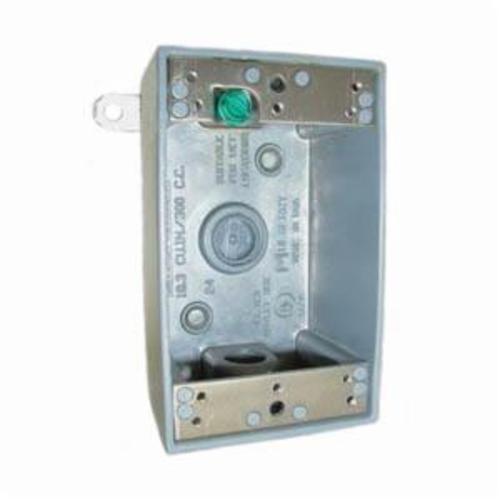

The MULBERRY METAL PRODUCTS 30587 weatherproof box is designed for use in wet, damp, or dry locations as a junction box or housing for devices. Constructed from rugged die-cast aluminum with a powder coat finish for weatherability and scratch resistance. This deep box features four 3/4 inch hubs, detachable mounting lugs, two closure plugs, and a self-tapping ground screw.

• Rugged Die-Cast Aluminum Construction
• Superior Powder Coat Paint Finish Assures Maximum Weatherability and Scratch Resistance
• Come with Detachable Mounting Lugs, 2 Closure Plug and a Self-Tapping Ground Screw

Product Highlights

This 1-gang deep weatherproof box is made in the USA and BAA compliant. It has a capacity of 24 cubic inches and is UL and CSA approved.

Product Information

Standard Information

• Brand: MULBERRY METAL PRODUCTS
• Manufacturer Part Number: 30587
• Country of Origin: USA

Technical Specifications

• Approval: UL (Canada and US)
• Capacity: 24 Cubic Inch
• Color: Gray
• Depth REF: 2.63 IN
• Finish: Powder Coated Painted
• Hub Location: (1) Back, (2) One End, (1) Other
• Hub Size: 3/4 Inch
• Manufacturer Name: Mulberry Metal Products
• Material: 0.094 Inch Thick Heavy Duty Die-Cast Aluminum
• Mounting Hardware: Lug
• Number Of Gangs: 1
• Number Of Hubs: 4
• Product UPC: 095327305877
• Type: Deep
• Width: 2.75 Inch
• application: For wet location applications
• includes: Detachable Lugs, (2) Close-Up Plugs and Self-Tapping Ground Screw
• manufacturer part number: 30587
• mounting orientation: Vertical
• mounting type: Lug
• number of outlets: 4
• standards/approvals: ARRA Compliant|Buy American Act Compliant|CSA Certified|UL Listed
• Product Type: Weatherproof Boxes
• Outlet Locations: 2 in 1 end, 1 in the other, 1 in back
• Cubic Capacity: 24 cubic inches
• Alternate Catalog Number: WP DEEP BOX 4H-3/4"
• ARRA Compliant: Y
• Buy American Compliant: Y
• Catalog Number: 30587
• Country of Origin: US
• Depth: 2.625 in
• EU RoHS Indicator: N
• Length: 4.500 in
• Mounting: Detachable Lug
• Number Of Outlet: 4
• Size: 2.750 IN Width X 4.500 IN Length X 2.625 IN Depth
• Standard: UL Listed, CSA Certified
• Standards: CSA Certified, UL Listed
• Brand: Mulberry
• Manufacturer: Mulberry Metal Products
• Number of Gangs: 1
