Mulberry Metal Products 30584 Outlet 3/4 in. Deep Single Gang Lug

Product Description

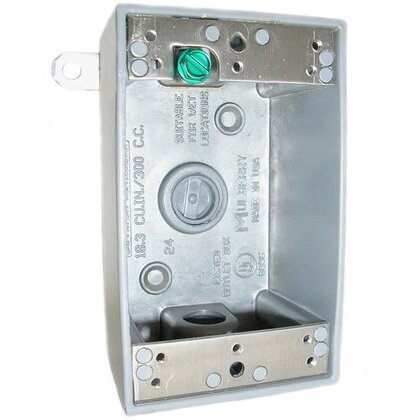

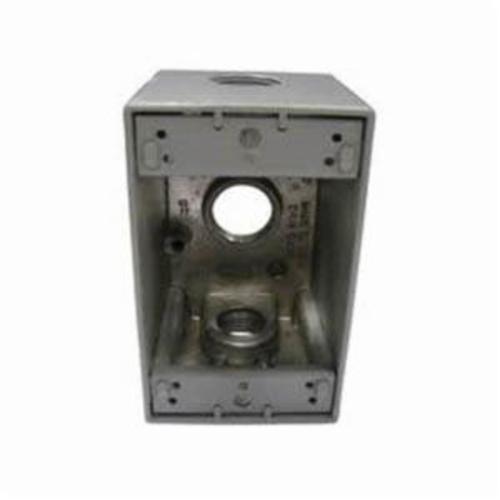

The Mulberry Metal Products 30584 is a 3/4 in. deep single gang lug. Constructed from die-cast aluminum with a powder coat finish, this weatherproof outlet box features 3 outlets and a 24 cu-in capacity. It is suitable for use in wet, damp, or dry locations and can be used as a weatherproof junction box or housing for devices.

• Weatherproof
• Deep
• Die-cast aluminum construction

Product Highlights

This single-gang outlet box has a 3/4 inch hub, detachable mounting lugs, 2 closure plugs, and a self-tapping ground screw. It is UL Listed and CSA Approved.

Product Information

Standard Information

• Brand: MULBERRY METAL PRODUCTS
• Manufacturer Part Number: 30584
• Country of Origin: USA

Technical Specifications

• Capacity: 24 cu-in
• Material: Die Cast Aluminum
• Color: Gray
• Mount: Vertical
• Hub Size: 3/4 in
• Gangs: 1
• Outlets: 3
• Height: 4-1/2 in
• Width: 2-3/4 in
• Depth: 2-5/8 in
• Type: Deep Weatherproof Outlet Box
• Product Type: Weatherproof Boxes
• Number of Outlets: (3) three threaded outlets
• Outlet Locations: 1 in each end, 1 in back
• Cubic Capacity: 24 cubic inches
• Mounting: Vertical, Horizontal
• Number of Threaded Outlets: 3
• Threaded Outlet Diameter: 3/4 in
• Number of Hubs: 3
• Hub Placement: (1) Each End (1) Back
• Application: For Wet Location
• ARRA Compliant: Y
• Buy American Compliant: Y
• Catalog Number: 30584
• Country of Origin: US
• Finish: Powder Coated
• Mounting Orientation: Vertical
• Number Of Outlet: 3
• Size: 3/4 IN Hub
• Standard: UL Listed, CSA
• Standards: CSA Certified, UL Listed
• UNSPSC: 39121305
• Brand: Mulberry
• Manufacturer: Mulberry Metal Products
• Number of Gangs: 1
