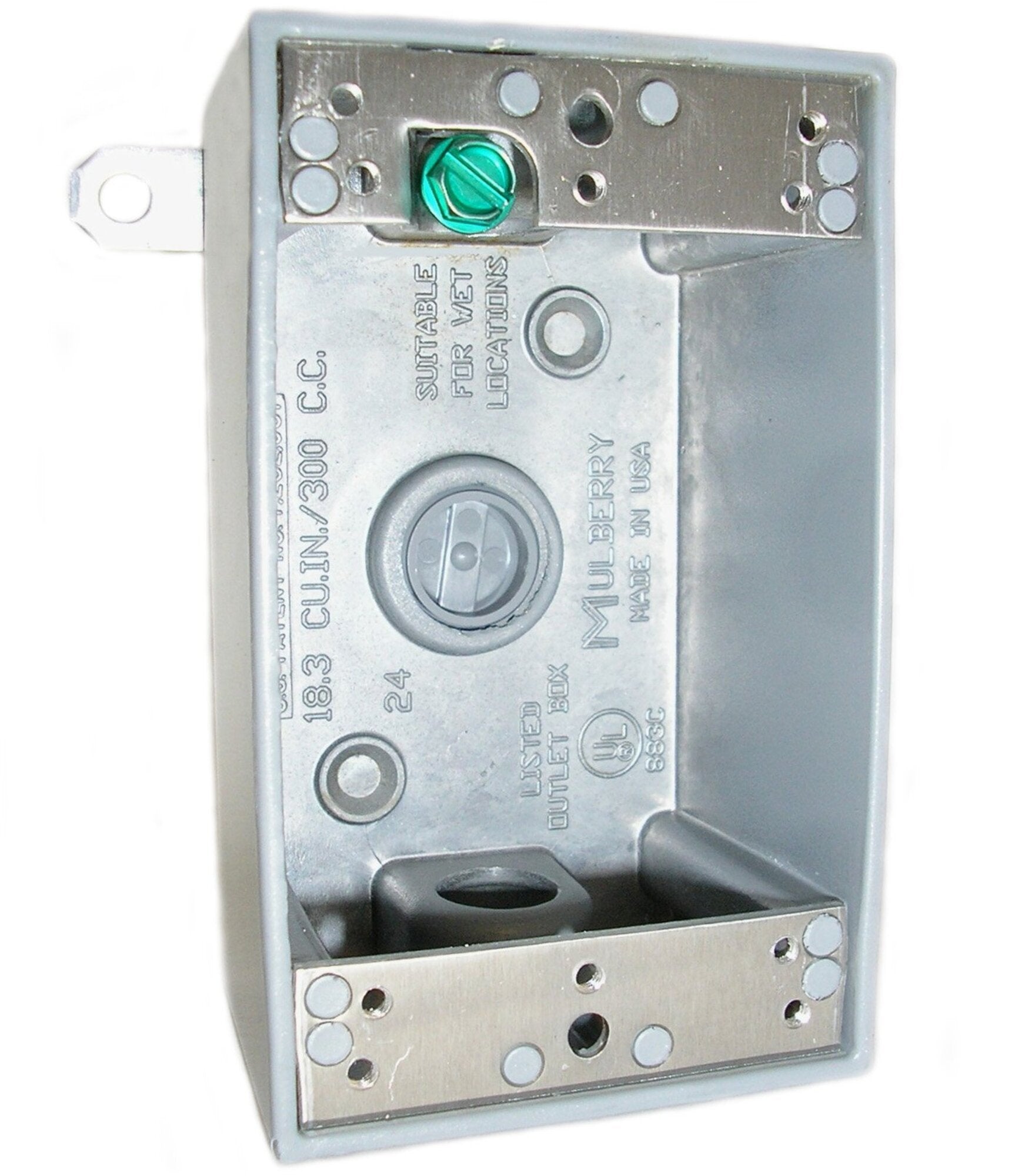

Mulberry Metal Products 30222 Weather-Proof Aluminum Box 5-Hole 3/4 inches

Product Description

The MULBERRY METAL PRODUCTS 30222 is a weatherproof aluminum box with 5-hole 3/4" outlets, suitable for branch circuit wiring in wet, damp, or dry locations. It can serve as a weatherproof junction box or housing for various devices. Constructed from die-cast aluminum with a powder coat paint finish.

• Features five 3/4 inch threaded outlets.
• Made from die-cast aluminum, .094 inches thick.
• Complies with UL Standard 514A and NEMA 3R Rated standards.

Product Highlights

This weatherproof box is ideal for outdoor applications, providing a secure and durable enclosure for electrical connections.

Product Information

Standard Information

• Brand: MULBERRY METAL PRODUCTS
• Manufacturer Part Number: 30222
• Country of Origin: USA

Technical Specifications

• Product Type: Weatherproof Boxes
• Gang: 1
• Number of Outlets: 5
• Hub Size: 3/4 in
• Outlet Locations: 1 in each end, 1 each side, 1 in back
• Cubic Capacity: 18 inches
• Finishes: State-of-the-art powder coat paint finish. Available in gray.
• Applicable Standards: UL Standard 514A, NEMA 3R Rated
• Certification: UL Listed
• Capacity: 18 cu-in
• Color: Gray
• Country of Origin: US
• Finish: Powder Coated
• Manufacturer Name: Mulberry Metal Products
• Material: 094 IN Heavy duty Die Cast Aluminum
• Mounting Orientation: Vertical
• Number of Gangs: 1
• Application: For All Indoor And Outdoor Damp Or Wet Locations
• Catalog Number: 30222
• Special Features: Features: All 1-Gang Boxes Available With Or Without Attached Swivel Lugs; 2.75 IN X 4.5 IN X 2.0 IN Deep; Heavy Duty Die-Cast Aluminum, 0.094 IN Thick, With Powder Finish; For Use In All Indoor And Outdoor Damp Or Wet Locations, With All Standard FS, Outlet, Lampholder Or Splice Box Covers; Ground Screw And 2 Close-Up Plugs Supplied With Each Box; Pre-Tapped Ground Screw Hole; UL Listed And CSA Approved; Comply With Federal Specification AA-50563; Outlets/location: (1) Each End, (1) Each Side, (1) Back; Hub Size: 3/4 IN
• Standard: UL Listed, CSA Certified, Federal Specification AA-50563
• Type: Single Gang
• Trade Size: 2.750 IN Width X 4.500 IN Length X 2 IN Depth:
