Mulberry Metal Products 30222 1-Gang Weatherproof Box with 5-1/2 inches Hubs (1 Per Side and Back)

Product Description

Mulberry Metal Products 30222 is a 1-gang weatherproof box intended for indoor and outdoor branch-circuit wiring and device housing. The die-cast aluminum enclosure provides 18 cubic inches capacity and five threaded hubs—one each end, one each side, and one in back—listed as 5-1/2" hubs. The box has a powder-coated finish, a pre-tapped ground screw, two close-up plugs, and carries UL and CSA certifications for damp and wet locations.

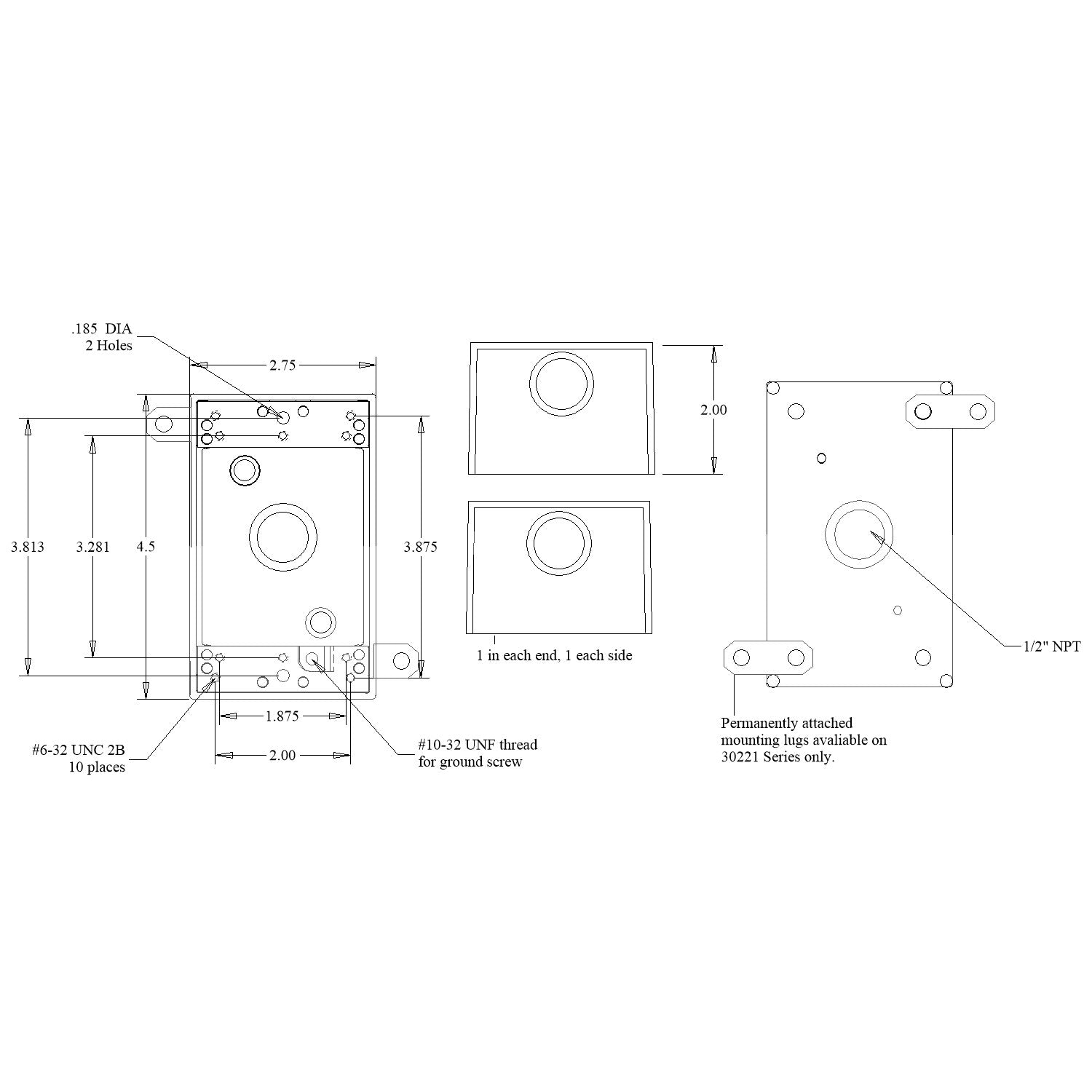

• Die-cast aluminum construction, 0.094 in wall thickness; dimensions 4-1/2 in H x 2-3/4 in W x 2 in D; 18 cu-in capacity
• Five threaded outlets/hubs (one each end, one each side, one back); hub size listed as 5-1/2" (likely a typographical error—see spec notes)
• Includes ground screw and two close-up plugs; pre-tapped ground screw hole; UL listed, CSA certified, Federal Specification AA-50563

Product Highlights

Single-gang weatherproof die-cast aluminum box with five threaded hubs, 18 cu-in capacity, powder-coated finish, UL/CSA certified

Product Information

Standard Information

• Brand: MULBERRY METAL PRODUCTS
• Manufacturer Part Number: 30222
• Country of Origin: United States
