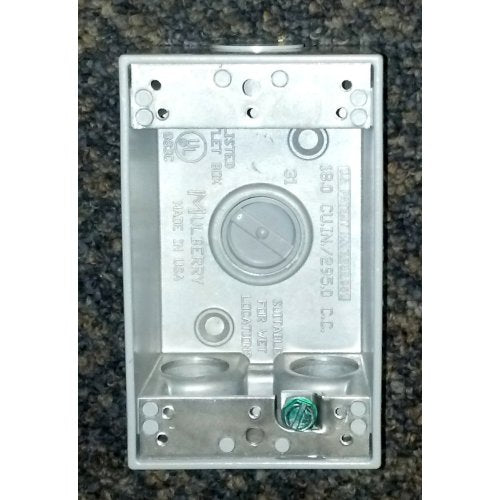

Mulberry Metal Products 30209 1/2 in. Outlet 4 in. Aluminum Single Gang Whirlpool Box with Lug

Product Description

The MULBERRY METAL PRODUCTS 30209 is a single gang aluminum whirlpool box with lug. This weatherproof box features four 1/2-inch threaded outlets and a permanently attached mounting lug for versatile installation. It is suitable for use in branch circuit wiring in wet, damp, or dry locations and can serve as a weatherproof junction box or housing for devices.

• Weatherproof
• Permanently Attached Mounting Lug
• Permanently attached lugs rotate for maximum versatility

Product Highlights

Die-cast aluminum construction with powder coat finish ensures weatherability and scratch resistance. Ground screw and closure plugs are included.

Product Information

Standard Information

• Brand: MULBERRY METAL PRODUCTS
• Manufacturer Part Number: 30209
• Country of Origin: US

Technical Specifications

• Material: Die Cast Aluminum
• Color: Gray
• Gang: 1
• Outlets: 4
• Mount: Lug Mount, Vertical Mount
• Hub Size: 1/2 in
• Volume: 18 cu-in
• Height: 4-1/2 in
• Width: 2-3/4 in
• Depth: 2 in
• Coating: Powder Coated
• Application: For use in branch circuit wiring in wet, damp or dry locations. May be used as a weatherproof junction box or as a housing for various devices.
• Application Standard: UL Standard 514A, NEMA 3R Rated
• Certification: UL Listed
• Alternate Catalog Number: WP ALUM BOX 4H-1/2" W/LUG
• ARRA Compliant: Y
• Buy American Compliant: Y
• Catalog Number: 30209
• Country of Origin: US
• EU RoHS Indicator: N
• Finish: Powder Coated
• Mounting Orientation: Vertical
• Mounting Type: Lug
• Number Of Outlet: 4
• Size: 1/2 IN Hub
• Standard: UL Listed, CSA, Federal Specification AA-50563
• Standards: CSA Certified, Federal Specification AA-50563, UL Listed
• Type: Weatherproof Device Box
• UNSPSC: 39121305
• UPC 11: 09532730209
• UPC 12: 09532730209
• Brand: Mulberry
• Manufacturer: Mulberry Metal Products
• Number of Gangs: 1
• Number of Hubs: 4
