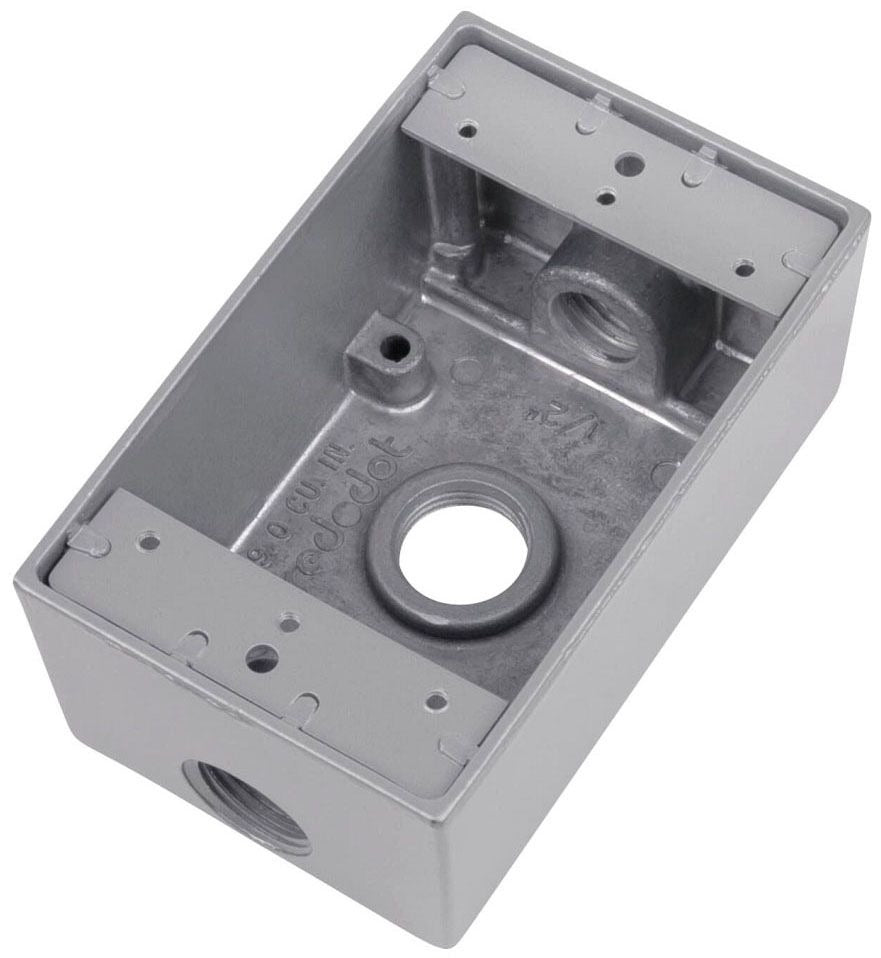

Mulberry Metal Products 30203W 3-Hole Aluminum Whirlpool Box With Lug (1 Gang / 3 Hubs)

Product Description

Mulberry Metal Products 30203W is a 3-hole aluminum whirlpool electrical box with an integrated lug, designed for mounting whirlpool-style fixtures and branch-circuit wiring in wet, damp, or dry locations. The unit is die-cast aluminum (0.094 in) with a powder-coated finish, three 1/2 inch threaded hubs (one at each end and one in back), about 18.3 cubic inch capacity, and dimensions of 2.75 x 4.5 x 2 inches.

• Single-gang die-cast aluminum construction (0.094 in) with powder-coated painted finish and integrated swivel lug.
• Three 1/2 inch threaded hubs (one each end, one back) and pre-tapped ground screw on the mounting strap.
• Rated for wet, damp, or dry locations with approximately 18.3 cubic inch capacity and compact 2.75 x 4.5 x 2 in dimensions.

Product Highlights

Single-gang, three 1/2 in hubs; 0.094 in die-cast aluminum with powder coat; pre-tapped ground screw; ~18.3 cu in capacity; 2.75 x 4.5 x 2 in; UL/UL 514A and NEMA 3R suitability.

Product Information

Standard Information

• Brand: MULBERRY METAL PRODUCTS
• Manufacturer Part Number: 30203W
• Country of Origin: USA
