Mulberry Metal Products 30201 Royal Mountie Weatherproof Box 19 cu-in

Product Description

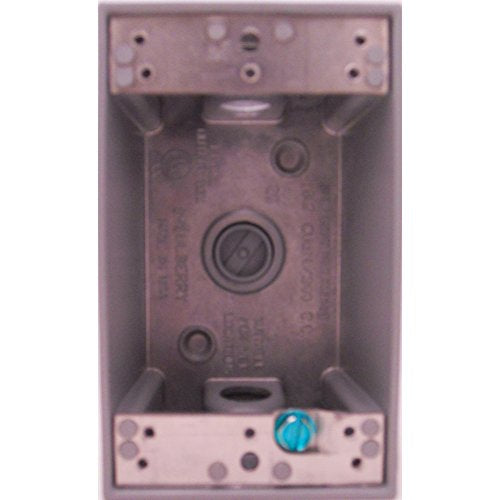

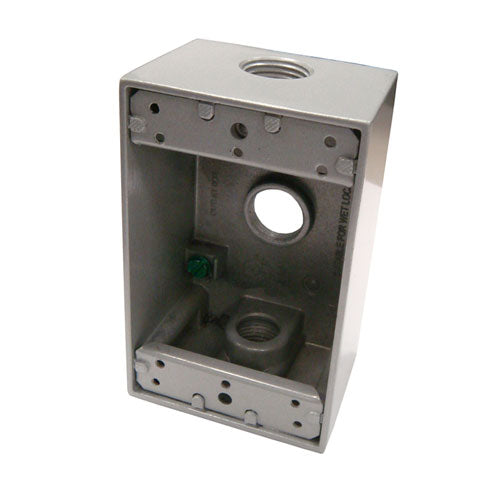

The Mulberry Metal Products 30201 Royal Mountie™ Weatherproof Box is a die-cast aluminum, powder-coated box with three outlets and a 1/2 inch hub. Designed for vertical mounting, it offers a 19 cu-in capacity and is suitable for wet, damp, or dry locations. It can serve as a weatherproof junction box or housing for devices.

• Weatherproof
• Die Cast Aluminum
• Powder Coated

Product Highlights

This weatherproof box is constructed from die-cast aluminum with a powder-coated finish and is suitable for indoor and outdoor use.

Product Information

Standard Information

• Brand: MULBERRY METAL PRODUCTS
• Manufacturer Part Number: 30201
• Country of Origin: US

Technical Specifications

• Material: Die Cast Aluminum
• Outlets: 3
• Gang: 1
• Hub Size: 1/2 in
• Mount: Vertical
• Cubic Inches: 19 cu-in
• Height: 4-1/2 in
• Width: 2-3/4 in
• Depth: 2 in
• Product Type: Weatherproof Boxes
• Number of Outlets: 3
• Outlet Locations: 1 in each end, 1 in back
• Application Standards: UL Standard 514A, NEMA 3R Rated
• Certification: UL Listed
• Number of Gangs: 1
• Hole Size (In.): 0.5
• Weatherproof: Y
• Standards: UL Listed, CSA Certified, Federal Specification AA-50563
• Threaded Outlet Diameter: 1/2 in
• Number of Threaded Outlets: 3
• Application: For All Indoor And Outdoor Damp Or Wet Locations
• ARRA Compliant: Y
• Buy American Compliant: Y
• Catalog Number: 30201
• Country of Origin: US
• Size: 1/2 IN Hub
• Type: Single Gang
• UNSPSC: 39121305
• UPC 11: 09532730201
• UPC 12: 09532730201
• Brand: Mulberry
