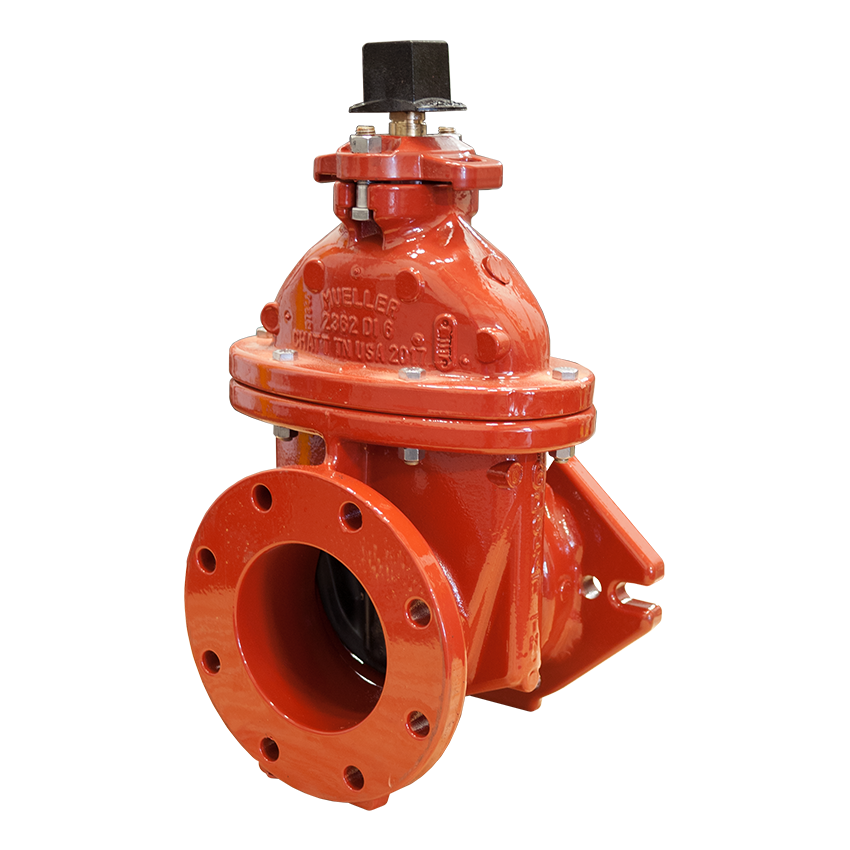

Mueller Water Products T2360-19 T-2362 Tapping Valve

Product Description

The MUELLER WATER PRODUCTS T2360-19 is a T-2362 tapping valve that meets or exceeds ANSI/AWWA C509 standards. It features flanged end drilling that complies with ASME/ANSI B16.1 class 125, B16.42 class 150 and with MSS SP-60. Designed for potable water applications with a 250 psig maximum working pressure.

• Meets or exceeds ANSI/AWWA C509 Standard
• UL 262 Listed
• FM 1120/1130 Approved

Product Highlights

This tapping valve is UL 262 Listed and FM 1120/1130 Approved. Also, it is certified to ANSI/NSF 61 & 372.

Product Information

Standard Information

• Brand: MUELLER WATER PRODUCTS
• Manufacturer Part Number: T2360-19

Technical Specifications

• Size: 2", 3", 4", 6", 8", 10", 12"
• Standards: Meets or exceeds all applicable requirements of ANSI/AWWA C509 Standard, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
• Flanged End Drilling: Complies with ASME/ANSI B16.1 class 125, B16.42 class 150 and with MSS SP-60
• Mechanical Joint Outlet: Complies with ANSI/AWWA C111 Standard
• Body Material: Iron body with nominal 10 mils Pro-Gard TM Fusion Bonded Epoxy Coated interior and exterior surfaces
• Epoxy Coating: Meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
• Wedge: Iron wedge, symmetrical and fully encapsulated with molded rubber; no exposed iron
• Stem: Non-rising stem (NRS)
• Seal: Triple O-ring seal (2 above the thrust collar and 1 below)
• Wrench Nut: 2" square wrench nut – open left or open right
• Working Pressure: 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3450 kPa/35 barg) static test pressure
• UL/FM Approval: UL Listed, FM Approved: 250 psig (1725 kPa/17 barg) maximum working pressure
• Application: Designed for potable water applications
