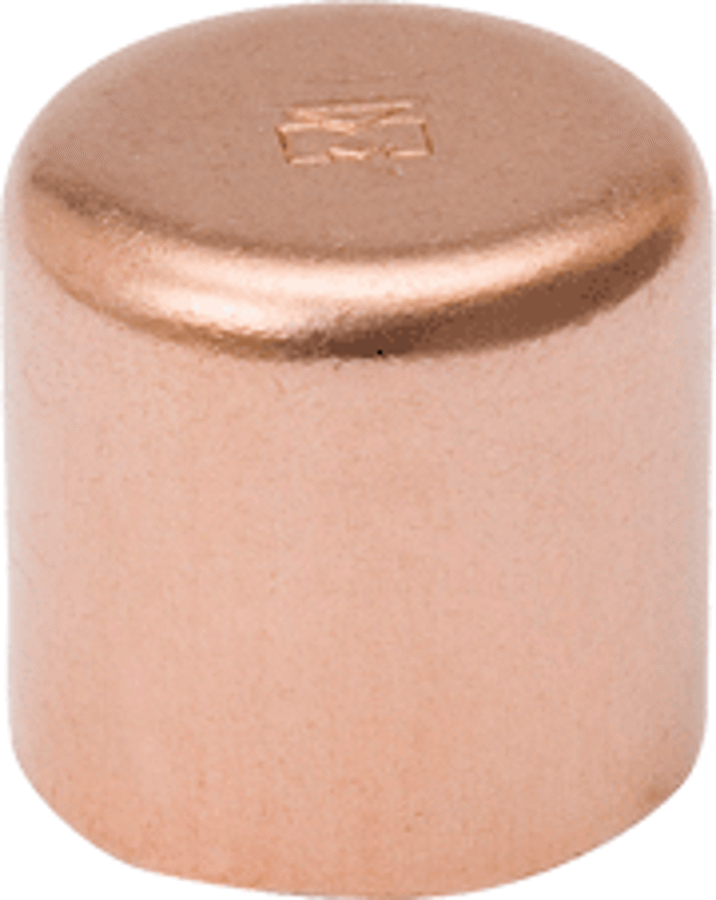

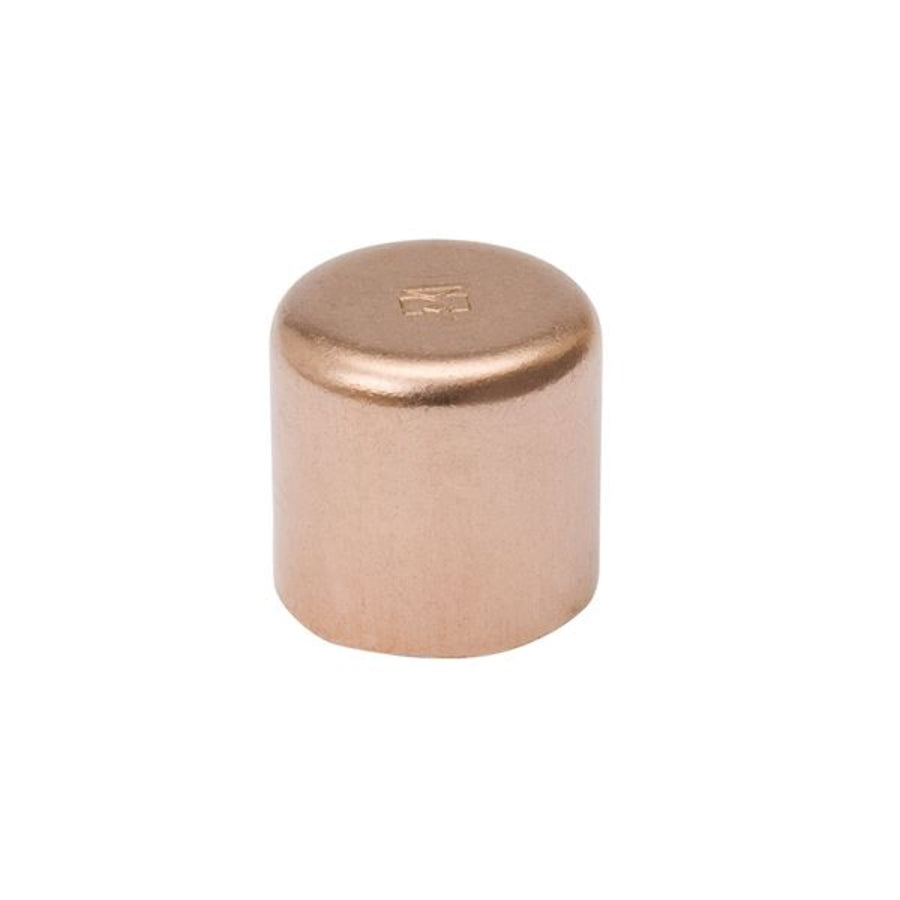

Mueller W07013 Copper Tube Cap, 1-5/8 OD (C) WC-415

Product Description

The Mueller W07013 Copper Tube Cap is designed for sealing copper tubing. This cap fits a pipe with an outer diameter of one and five-eighths inches and has a C connection end. The W07013 is part of the Streamline series and is made from durable wrot copper. It is a solder-joint fitting that ensures a secure seal, making it suitable for plumbing and refrigeration applications.

• Constructed from high-grade wrot copper
• Conforms to ASME B16.22 and MSS SP104 standards
• Pressure rating of seven hundred psi at two hundred fifty degrees Fahrenheit

Product Highlights

This copper cap is used for various plumbing purposes, providing a reliable solution for closing off copper pipes.

Product Information

Standard Information

• Brand: Mueller
• Part Number: W07013

Technical Specifications

• Type: Tube Cap
• Length: 1.15 inches
• Material: Wrot Copper
• Connection Ends: C
• Connection Sizes OD: 1-5/8 inches
• Manufacturing Standards: ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, ASTM B75, MSS SP104, NSF 61G, UL Recognized, UNS C12200
• Pressure Rating: 700 psi
• Temperature Rating: 250 degrees Fahrenheit
