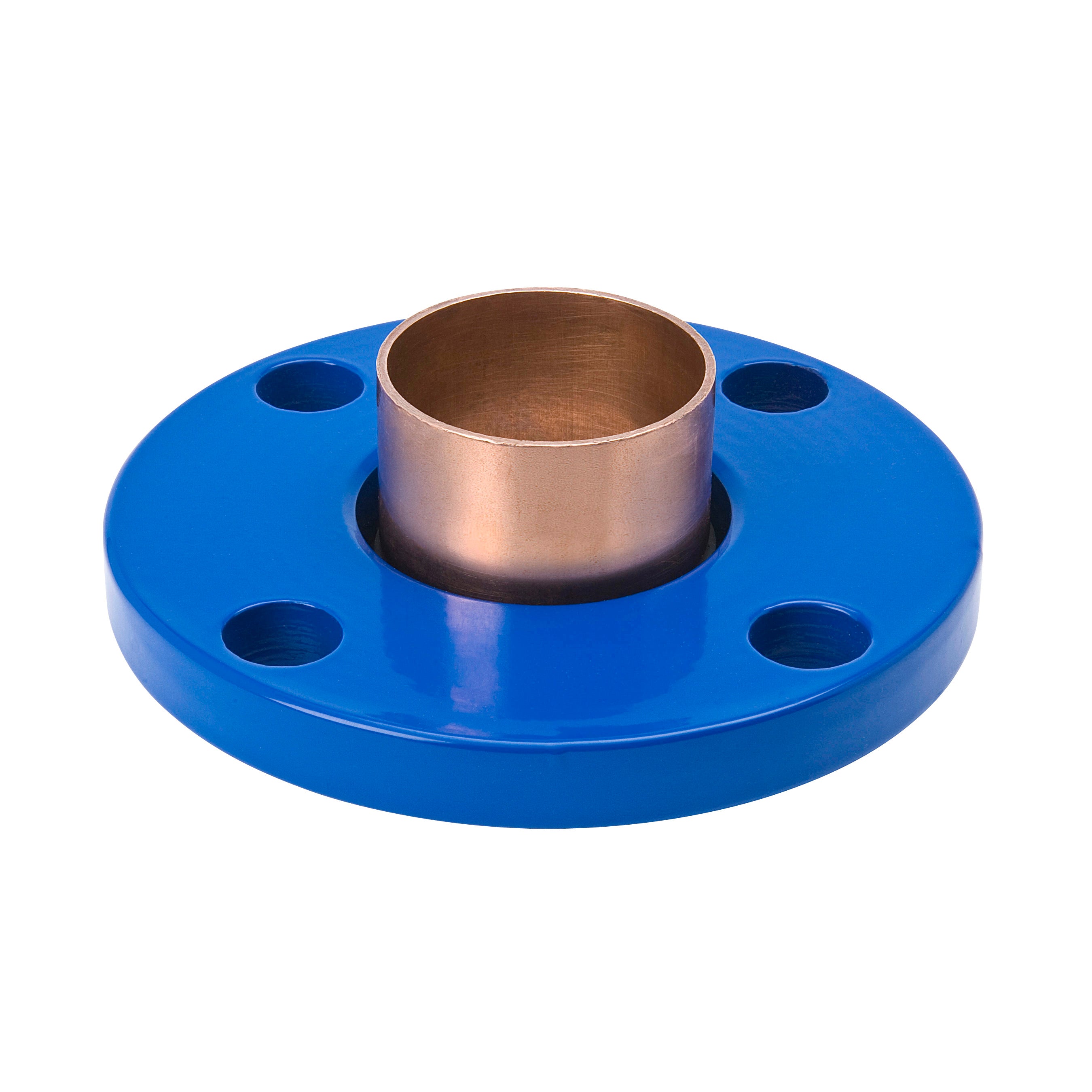

Mueller W02980NL Companion Flange Class 150 2 in Female Solder Cup x Flanged

Product Description

The Mueller Streamline W02980NL is a companion flange made from wrot copper. This two-piece design includes a female solder cup and flanged connection, suitable for quick installation in various plumbing applications. It meets industry standards and provides reliable performance for both above and underground uses.

• Two-piece wrot copper design for easy installation
• EPDM insulator for electrolysis protection
• Lead-free, certified to ASME B16.22, ASME B16.5, NSF/ANSI 61G

Product Highlights

This flange offers a combination of durability and ease of use, making it ideal for professional plumbers seeking a dependable fitting.

Product Information

Standard Information

• Brand: Mueller Streamline
• Manufacturer: Mueller Industries

Technical Specifications

• Connection Size: 2 in
• Connection Type: Female Solder Cup x Flanged
• Pressure Class: Class 150
• Temperature Rating: -66 to 272 deg F
• Bolt Circle Diameter: 4-3/4 in
• Bolt Hole Diameter: 3/4 in
• Outside Diameter: 6 in
• Thickness: 0.63 in
