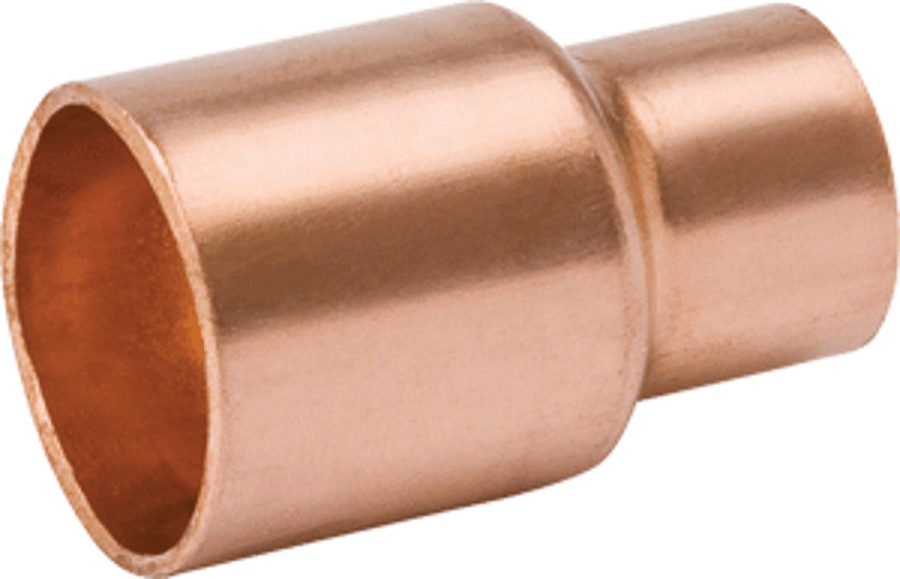

Mueller W01094 Copper Coupling Reducing 3-1/8 x 2-1/8 OD C x C WC-400R

Product Description

The Mueller W01094 is a copper coupling reducing fitting designed for use in plumbing systems. This coupling connects two pipes of different diameters, with an outside diameter of three and one-eighth inches on one end and two and one-eighth inches on the other. It forms a secure joint for efficient water flow in applications where pipe size varies.

• Type: Coupling
• Material: Wrot Copper
• Connection Ends: C x C

Product Highlights

This coupling is made to withstand high pressure and is suitable for above-ground systems.

Product Information

Standard Information

• Brand: Mueller
• Part Number: W01094

Technical Specifications

• Application: For use in above-ground potable water supply systems
• End Style: C x C
• Fitting/Connector Type: Coupling
• Material: Copper
• Manufacturing Standards/Approvals: ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, NSF 61G
• Nominal Size: 3 x 2 inches
• Pressure Rating: 700 psi
