Mueller Streamline X 02717 Elbow 90 Degree Long Radius (C x C) Replacement MPN

Product Description

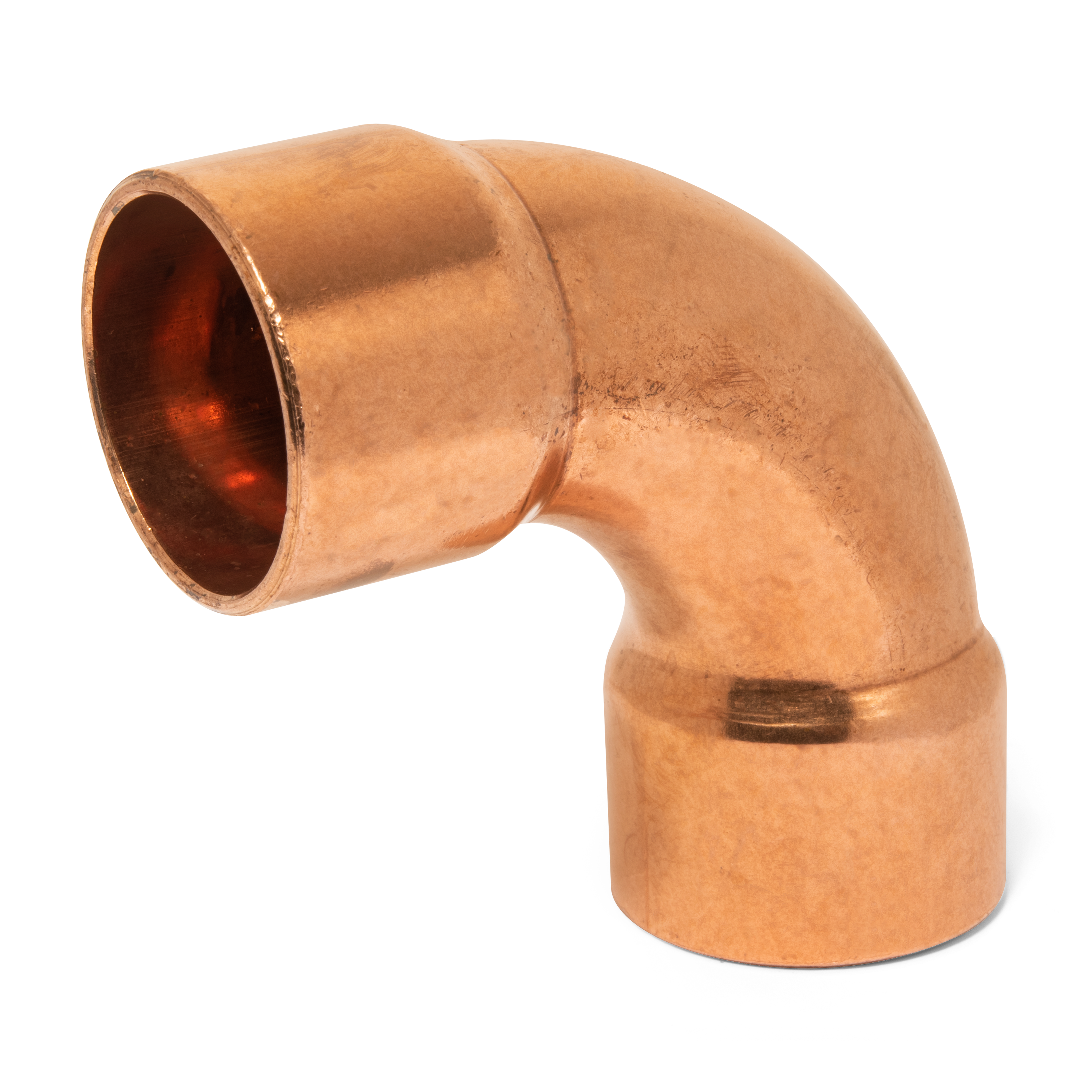

The MUELLER STREAMLINE X 02717 elbow is a 90-degree, long radius fitting designed for refrigeration applications. These Copper-Iron Fittings are available in sizes ranging from 3/8” to 2-1/8” for continuous 1885 PSI pressure ratings at 250°F. It is made from material in compliance with UNS C19400 grade of copper.

• Third party verified through Underwriters Laboratories for max operating temperature of 250° F (120° C) and continuous operating pressure of 1740 psi (120 Bar).
• Developed for use with high pressure refrigerants.
• Made from material in compliance with UNS C19400 grade of copper.

Product Highlights

The Streamline® XHP Copper-Iron Fittings are suitable for refrigeration applications requiring high pressure and temperature resistance.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: X 02717

Technical Specifications

• Material: COPPER-IRON
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 1885 psi
• End Type: Cup (Braze)
• End Size: 1/2 in
• Second End Type: Cup (Braze)
• Second End Size: 1/2 in
• Standards: Copper-iron (CuFe2P) UNS C19400 130 BAR / 1,885 PSI 120°C / 250°F
• Overall Length: 1.27 in
• Overall Height: 1.27 in
• Overall Width: 0.58 in
• X: 0.63 in
• Qty Pcs / Bag: 5
• Master Qty Pcs / Box: 100
• Mueller Description: 1/2 OD LR 90 ELL
• Item: Elbow
• Height (cm): 3.23
• Length (cm): 3.23
• Width (cm): 1.47
• Weight (kg): 0.0126
