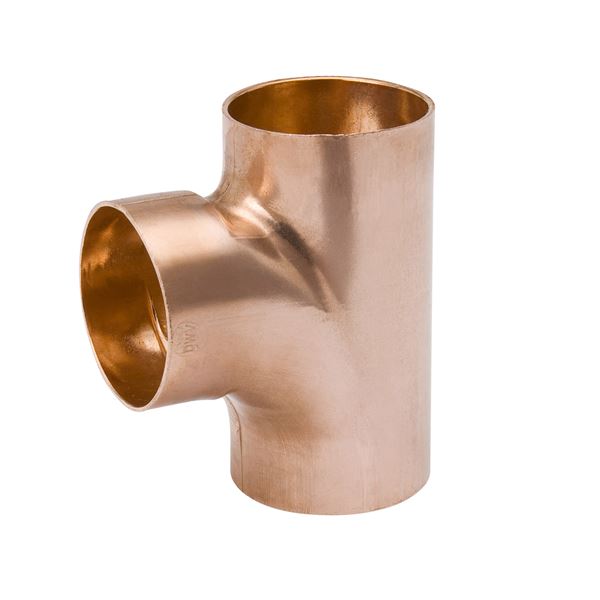

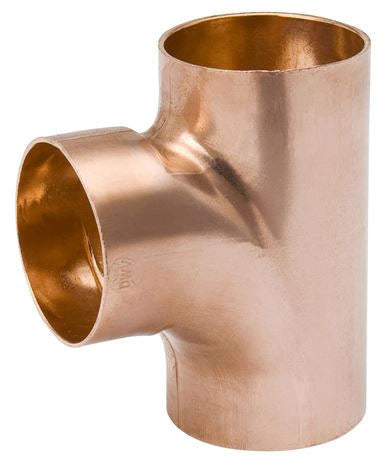

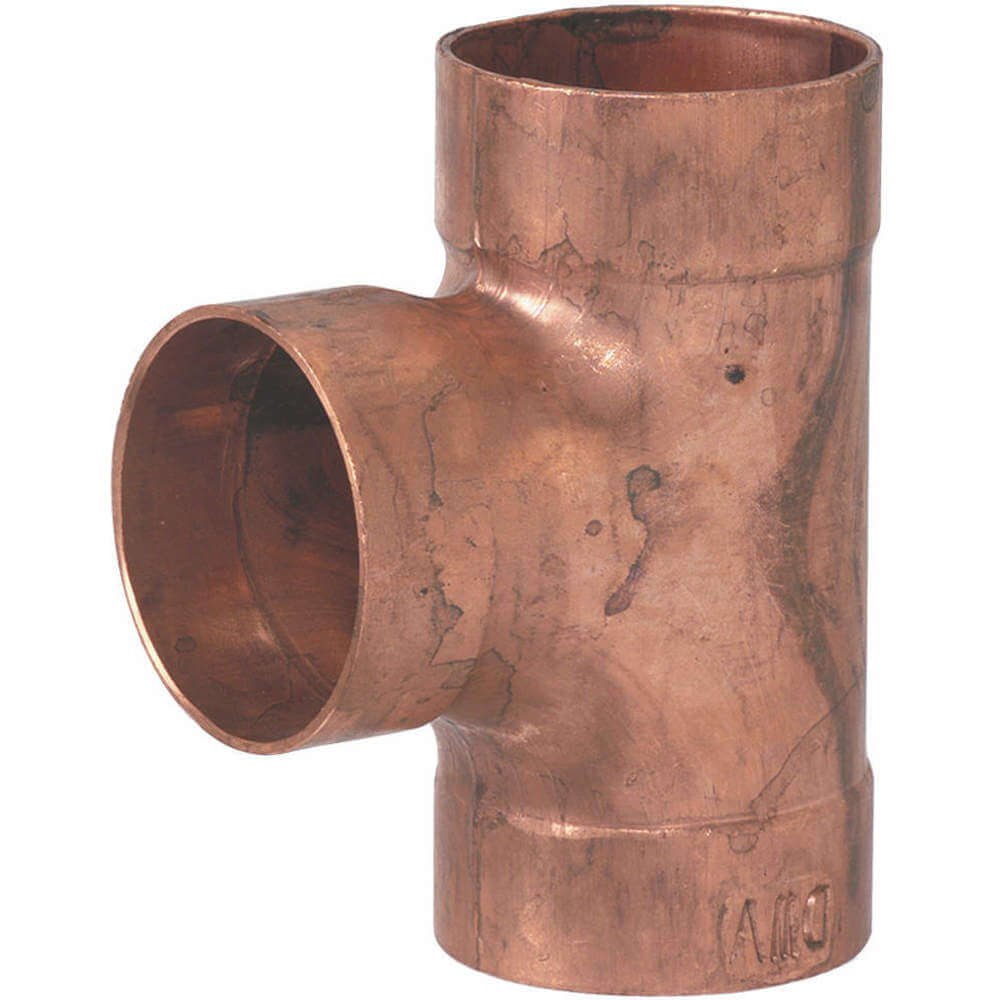

Mueller Streamline W07522 DWV Tee 2 Inch x 2 Inch x 2 Inch

Product Description

The MUELLER STREAMLINE W07522 is a tee fitting designed for non-pressurized DWV sanitary systems, plumbing, and mechanical applications. Constructed from UNS C12200 copper with female soldered end connections. This straight type tee fitting meets ASME B16.22/23/29/B1.20.1, MSS SP104, and NSF/ANSI 61G standards.

• Lead-Free
• Nominal size of 2 Inch x 2 Inch x 2 Inch
• Made from UNS C12200 Copper

Product Highlights

This copper tee fitting is ideal for use in drain, waste, and vent sanitary systems. It features female solder cup connections and is made to applicable ASME standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W07522
• Country of Origin: United States

Technical Specifications

• Applicable Standard: ASME B16.22/23/29/B1.20.1, MSS SP104, NSF/ANSI 61G
• Application: Non-Pressurized DWV Sanitary System, Plumbing, Mechanical
• Catalog Number: W07522
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Features/Benefits: Lead-Free
• Manufacturer Name: Mueller Streamline
• Manufacturer Part Number: W07522
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Nominal Size: 2 Inch x 2 Inch x 2 Inch
• Process: Wrot
• Series/Model: DW-707
• Type: Straight
• UNSPSC Code: 40183102
• UPC: 685768211679
• Lead-Free: Lead-Free
• Outer Diameter: 2-1/8 Inch
• End Type: C Cup Female Solder
• End Size: 2"
• Second End Type: C Cup Female Solder
• Second End Size: 2"
• Third End Type: C Cup Female Solder
• Third End Size: 2"
• Standards: ASME B16.23, ASME B16.29, NSF/ANSI 61 ANNEX G
• Overall Length: 3.97"
• Overall Height: 3 14/25"
• Overall Width: 2 1/4"
• Fitting/Connector Type: Tee
• Fitting Side A Connection Type: Cup
• Fitting Side A Copper Tube Size: 2"
• Fitting Side B Connection Type: Cup
• Fitting Side B Copper Tube Size: 2"
• Fitting Side C Connection Type: Cup
• Fitting Side C Copper Tube Size: 2"
• Max. Pressure: 364 psi
• Outside Dia.: 2 1/8"
• Size: 2"
• Temp. Range: -20°F to +400°F
• Body Material: Wrought Copper
• Country of Origin: United States
• Item: DWV Tee
• Application Type: DWV
• Basic Pipe Fitting Material: Metal
• Basic Pipe Fitting Shape: Tee
• Fitting Material: Copper
• Domestic/Import: Domestic
• End Style: Sweat
