Mueller Streamline W07432 2 Cop Dwv St 45 Elbow 2 Inch

Product Description

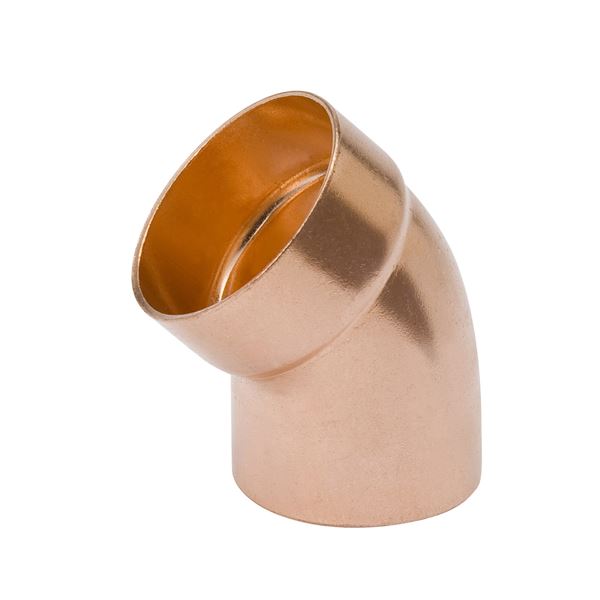

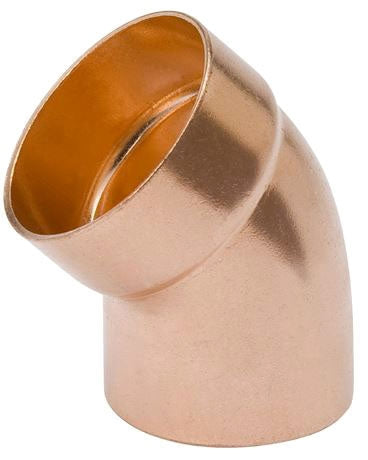

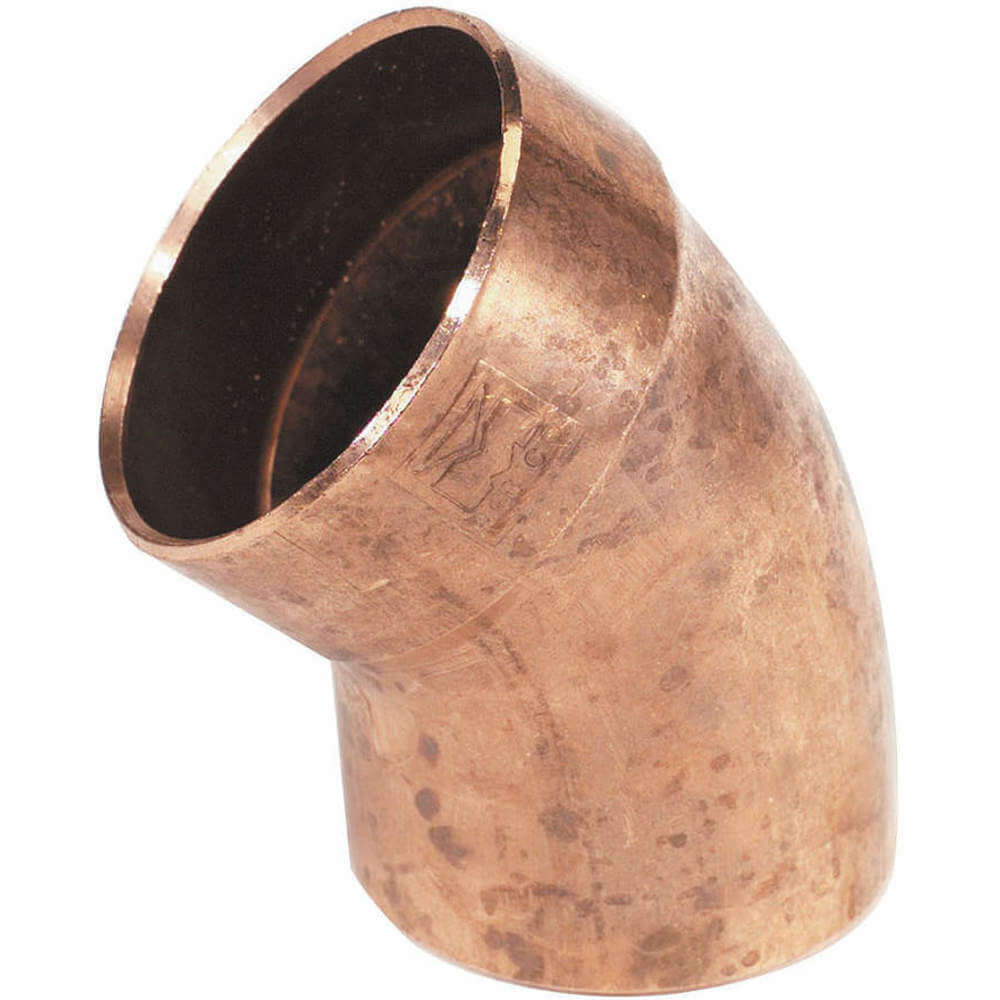

The MUELLER STREAMLINE W07432 is a 2-inch copper DWV street elbow fitting designed for non-pressurized sanitary systems. Constructed from UNS C12200 copper, this fitting features a male soldered x female soldered end connection and a 45-degree angle. It is suitable for plumbing and mechanical applications.

• Features a 45-degree angle.
• Made from UNS C12200 copper.
• Designed for non-pressurized DWV sanitary systems.

Product Highlights

This lead-free copper elbow fitting is ideal for drain, waste, and vent systems, offering durability and corrosion resistance.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W07432
• Country of Origin: United States

Technical Specifications

• Angle: 45 Degree
• Applicable Standard: ASME B16.22/23/29/B1.20.1, MSS SP104, NSF/ANSI 61G
• Application: Non-Pressurized DWV Sanitary System, Plumbing, Mechanical
• End Connection: Male Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Size A: 2 Inch
• Size B: 2 Inch
• Type: Straight, Street
• Manufacturer Part Number: W07432
• End Type: C Cup Female Solder
• Second End Type: FTG Fitting Male Solder
• End Size: 2"
• Second End Size: 2"
• Overall Length: 2.87"
• Overall Height: 3.31"
• Overall Width: 2.25"
• standard: ASME B16.23, ASME B16.29, NSF/ANSI 61 ANNEX G
• Fitting Side A Copper Tube Size: 2"
• Fitting Side B Copper Tube Size: 2"
• Max. Pressure: 364 psi
• Temp. Range: -20°F to +400°F
• Fitting Material: Wrot Copper
• Body Material: Wrought Copper
• Basic Pipe Fitting Shape: Elbow
• Basic Pipe Fitting Material: Metal
• Resistance Properties: Corrosion Resistant, Scaling-Resistant
• Nominal Size: 2 In
• Domestic/Import: Domestic
• Application Type: DWV
