Mueller Streamline W07421 1-1/2 Cop Dwv 45 Elbow

Product Description

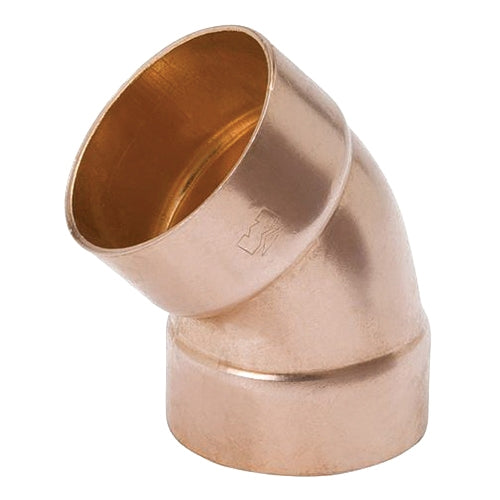

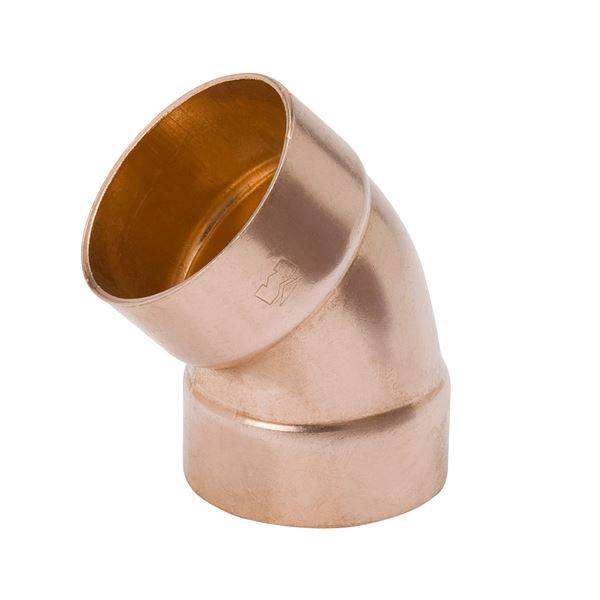

The MUELLER STREAMLINE W07421 elbow fitting is a straight type with a 45-degree angle. Constructed from UNS C12200 copper with ASTM B75/B88/B280 material specifications and a wrot process, it's designed for non-pressurized DWV sanitary systems, plumbing, and mechanical applications. It features a female soldered x female soldered end connection and conforms to ASME B16.22/23/29/B1.20.1, MSS SP104, and NSF/ANSI 61G standards.

• Lead-Free
• 1-1/2 Inch Size A and Size B
• Female Soldered x Female Soldered End Connection

Product Highlights

This copper elbow fitting is ideal for non-pressurized plumbing systems, offering a reliable and code-compliant solution.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W07421

Technical Specifications

• Angle: 45 Degree
• Applicable Standard: ASME B16.22/23/29/B1.20.1, MSS SP104, NSF/ANSI 61G
• Application: Non-Pressurized DWV Sanitary System, Plumbing, Mechanical
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Size A: 1-1/2 Inch
• Size B: 1-1/2 Inch
• Type: Straight
• Outer Diameter: 1-5/8 Inch
• Nominal Size: 1-1/2 Inch
• End Style: Copper
• Method of Manufacture: Seamless
• Industry Standards: ASME B16.22, MSS SP104
• End Type: C - Cup (Female Solder)
• Second End Type: C - Cup (Female Solder)
• Overall Length: 2.29 in
• Overall Height: 2.53 in
• Overall Width: 1.75 in
• Application Type: DWV
• Domestic/Import: Domestic
