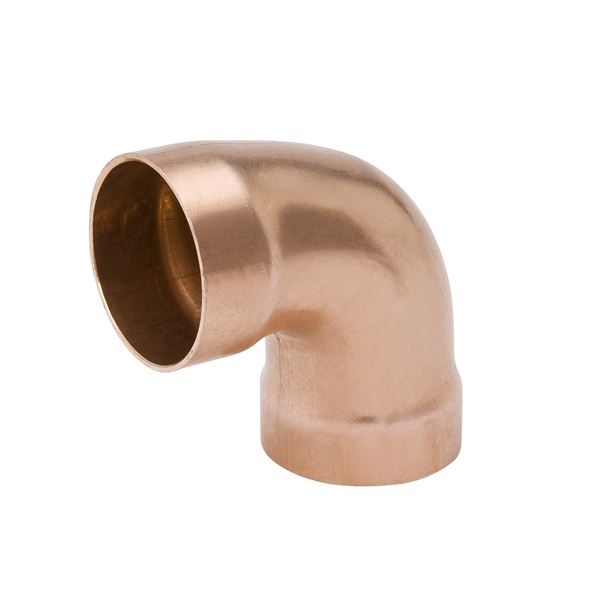

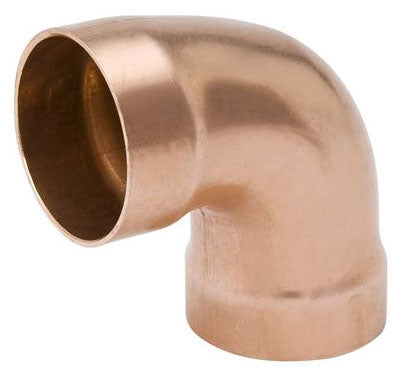

Mueller Streamline W07403 DWV 90 Elbow 2 inch

Product Description

The MUELLER STREAMLINE W07403 is a DWV 90-degree elbow designed for non-pressurized sanitary systems, plumbing, and mechanical applications. Constructed from UNS C12200 copper, this straight elbow features female soldered connections on both ends. It conforms to ASME B16.22/23/29/B1.20.1, MSS SP104, and NSF/ANSI 61G standards.

• Lead-Free
• 90 Degree Angle
• Female Soldered x Female Soldered Connection

Product Highlights

Ideal for use in non-pressurized drain, waste, and vent sanitary systems. Made with high-grade copper.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W07403
• Country of Origin: United States

Technical Specifications

• Angle: 90 Degree
• Applicable Standard: ASME B16.22/23/29/B1.20.1, MSS SP104, NSF/ANSI 61G
• Application: Non-Pressurized DWV Sanitary System, Plumbing, Mechanical
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Size A: 2 Inch
• Size B: 2 Inch
• Type: Straight
• Additional Information: Lead-Free; Outer Diameter 2-1/8 Inch
• Manufacturer Part Number: W07403
• Outer Diameter: 2-1/8 Inch
• Lead-Free: True
• End Type: C - Cup (Female Solder)
• End Size: 2 in
• Second End Type: C - Cup (Female Solder)
• Second End Size: 2 in
• Standards: ASME B16.23, ASME B16.29
• Overall Length: 3.68 in
• Overall Height: 3.68 in
• Overall Width: 2.25 in
• Series: DW-200
• Nominal Size: 2 Inch
• End Style: Copper
• Method of Manufacture: Seamless
• Industry Standards: ASME B16.22, MSS SP104
• Dimensions: 2-1/8 Inch OD
• Standard/Approvals: NSF/ANSI 61 Approved
• Application Type: DWV
• Domestic/Import: Domestic
• Fitting/Connector Type: 90 deg Elbow
• Country of Origin: United States
