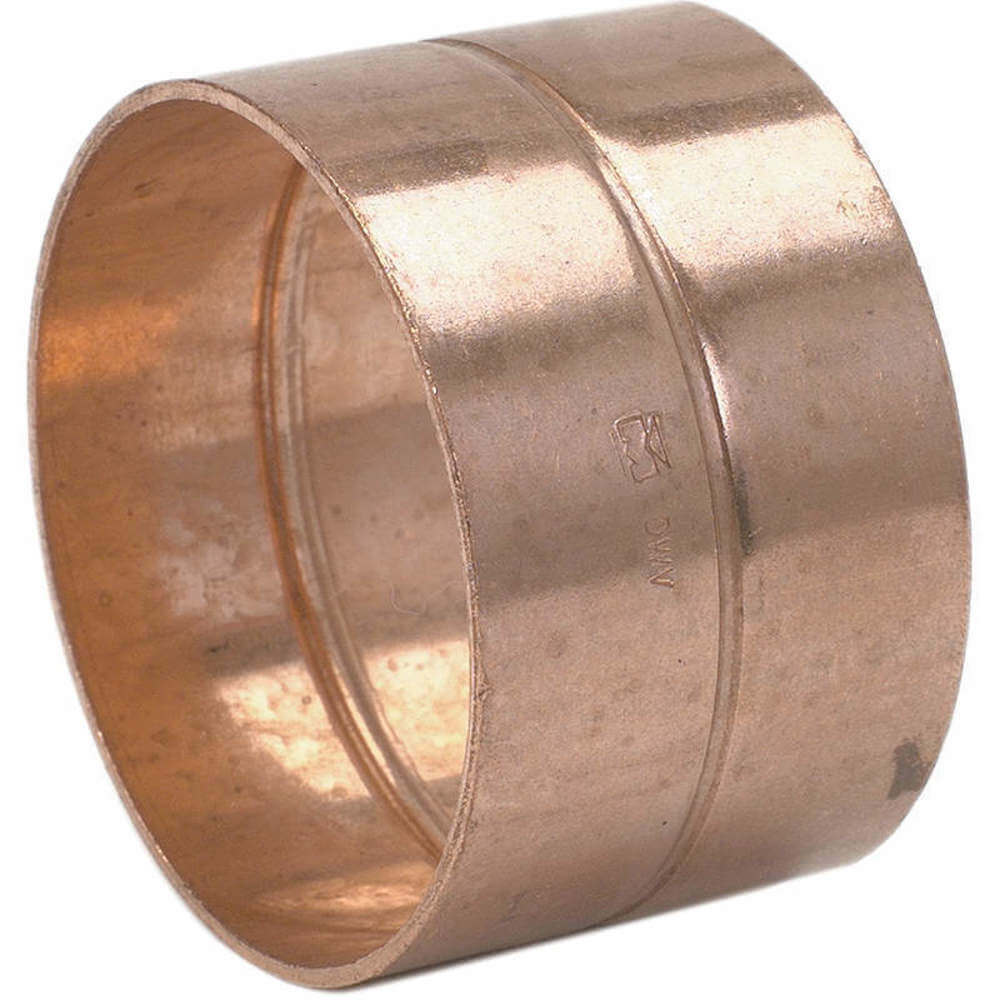

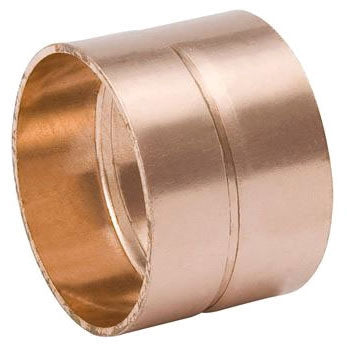

Mueller Streamline W07072 dwv coupling 2 inch

Product Description

The MUELLER STREAMLINE W07072 is a 2 inch straight coupling fitting. Constructed from UNS C12200 copper, it features female soldered end connections. Designed for non-pressurized DWV sanitary systems, plumbing, and mechanical applications. This wrot fitting meets ASME B16.22/23/29/B1.20.1, MSS SP104, and NSF/ANSI 61G standards.

• Lead-Free
• Female Soldered x Female Soldered end connection
• Suitable for Non-Pressurized DWV Sanitary System, Plumbing, Mechanical applications

Product Highlights

Designed for use in non-pressurized sanitary systems, this coupling features shorter solder cup designs and sweeping turns.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W07072
• Country of Origin: US

Technical Specifications

• Applicable Standard: ASME B16.22/23/29/B1.20.1, MSS SP104, NSF/ANSI 61G
• Application: Non-Pressurized DWV Sanitary System, Plumbing, Mechanical
• Catalog Number: W07072
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Size A: 2 Inch
• Size B: 2 Inch
• Type: Straight
• Outer Diameter: 2-1/8 Inch
• End Type: C - Cup (Female Solder)
• End Size: 2 in
• Second End Type: C - Cup (Female Solder)
• Second End Size: 2 in
• Overall Length: 1.28 in
• Overall Height: 2.25 in
• Overall Width: 2.25 in
• Item: DWV Coupling
• Basic Pipe Fitting Material: Metal
• Basic Pipe Fitting Shape: Coupling
• Body Material: Wrought Copper
• Fitting Material: Wrot Copper
• Fitting Side A Connection Type: Cup
• Fitting Side A Copper Tube Size: 2"
• Fitting Side B Connection Type: Cup
• Fitting Side B Copper Tube Size: 2"
• Includes Center Stop: Rolled Center Stop
• Max. Pressure: 364 psi @ 100°F
• Outside Dia.: 2 1/8"
• Resistance Properties: Corrosion Resistant, Scaling-Resistant
• Size: 2"
• Specific Pipe Fitting Shape: Coupling
• Temp. Range: -20°F to +400°F
• standard: NSF/ANSI 61 ANNEX G
• Nominal Size A: 2 inch
• Nominal Size B: 2 inch
