Mueller Streamline W04086 Tee Fitting 1-1/2 Inch x 1-1/2 Inch x 1 Inch

Product Description

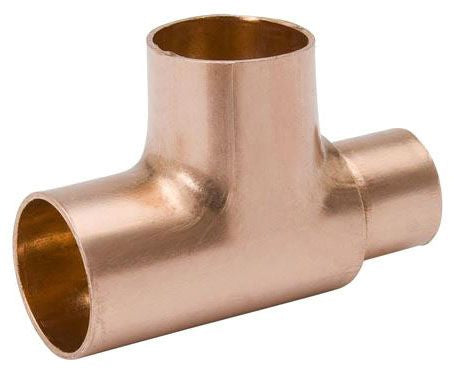

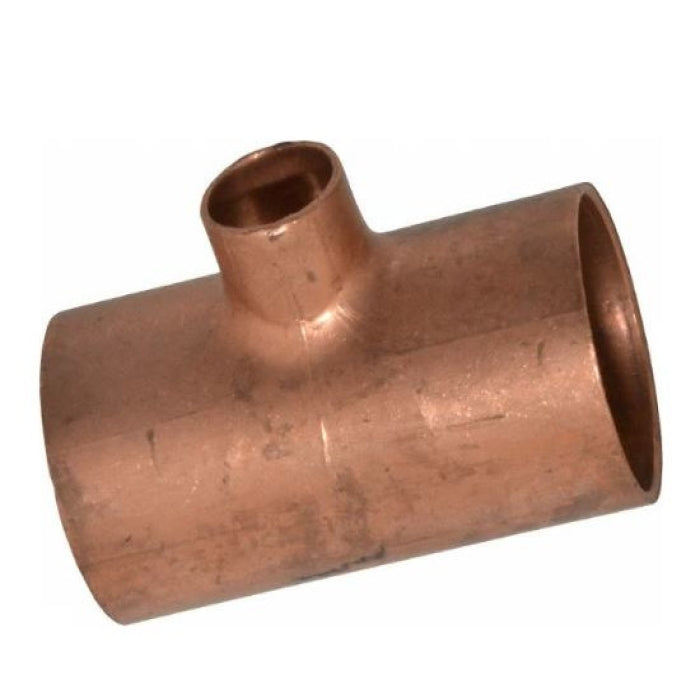

The MUELLER STREAMLINE W04086 tee fitting is a reducing type fitting with nominal size 1-1/2 Inch x 1-1/2 Inch x 1 Inch and female soldered end connections. Constructed from UNS C12200 copper, meeting ASTM B75/B88/B280 material specifications. Suitable for potable water supply systems and HVACR applications with a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Lead-Free
• Female Soldered x Female Soldered x Female Soldered end connections
• Suitable for Potable Water Supply System and HVACR applications

Product Highlights

This copper reducing tee fitting is ideal for plumbing and HVAC applications requiring a reliable, lead-free connection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W04086
• Country of Origin: United States

Technical Specifications

• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Application: Potable Water Supply System, HVACR
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Nominal Size: 1-1/2 Inch x 1-1/2 Inch x 1 Inch
• Pressure Rating: 700 PSI
• Process: Wrot
• Temperature Rating: 250 Deg F
• Type: Reducing
• Outer Diameter: 1-5/8 Inch x 1-5/8 Inch x 1-1/8 Inch
• End Type: C - Cup (Female Solder)
• End Size: 1 1/2
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1 1/2
• Third End Type: C - Cup (Female Solder)
• Third End Size: 1
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 3.38 in
• Overall Height: 2.54 in
• Overall Width: 1.73 in
• Style: WT-600R
• Fitting/Connector Type: Tee
• Working Pressure: 700 psi
• Method of Manufacture: Seamless
• Industry Standards: ASME B16.22, MSS SP104
• Dimensions: 1-5/8 x 1-5/8 x 1-1/8 Inch OD
• Brand: MUELLER INDUSTRIES
• MPN: W04086
• UPC: Does Not Apply
• Country of Origin: United States
• Category: Business & Industrial
• Series: WT-600
