Product Description

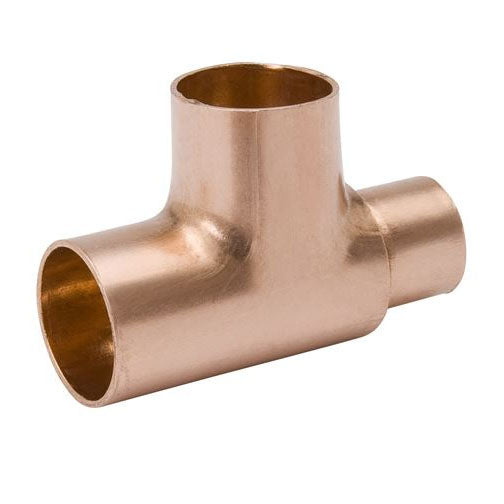

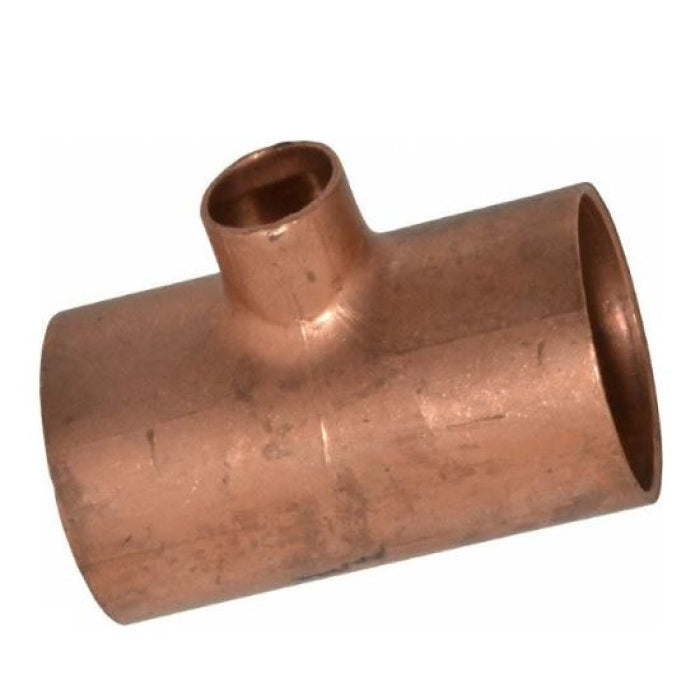

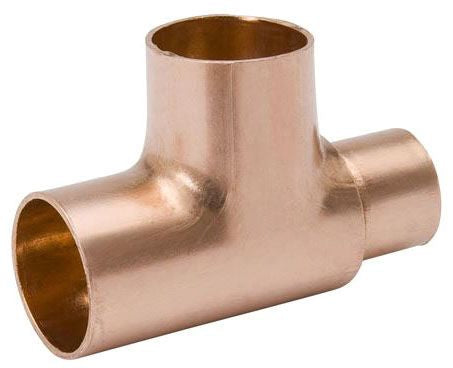

The MUELLER STREAMLINE W04085 Tee Fitting is a reducing type fitting with nominal size 1-1/2 Inch x 1-1/2 Inch x 1-1/4 Inch. Constructed from UNS C12200 copper, it adheres to material specifications ASTM B75/B88/B280. This wrot fitting has a pressure rating of 700 PSI and a temperature rating of 250 Deg F. Suitable for potable water supply systems and HVACR applications.
- Lead-Free
- End Connection: Female Soldered x Female Soldered x Female Soldered
- Outer Diameter 1-5/8 Inch x 1-5/8 Inch x 1-3/8 Inch
Product Highlights
The MUELLER STREAMLINE W04085 copper tee fitting is ideal for plumbing and HVACR applications.
Product Information
Standard Information
-
Brand: MUELLER STREAMLINE
-
Manufacturer Part Number: W04085
-
Country of Origin: US
Technical Specifications
-
Category: Plumbing & Bath / Kitchen Fixtures
-
Type: Reducing
-
Material: Copper
-
Nominal Size: 1-1/2 Inch x 1-1/2 Inch x 1-1/4 Inch
-
End Connection: Female Soldered x Female Soldered x Female Soldered
-
Material Specification: ASTM B75/B88/B280
-
Process: Wrot
-
Pressure Rating: 700 PSI
-
Temperature Rating: 250 Deg F
-
Application: Potable Water Supply System, HVACR
-
Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
-
Additional Information: Lead-Free; Outer Diameter 1-5/8 Inch x 1-5/8 Inch x 1-3/8 Inch
-
UNSPSC Code: 40183102
-
CATALOG NUMBER: W04085
-
Manufacturer Name: Mueller Streamline
-
Manufacturer Part Number: W04085
-
Series/Model: WT-600
-
Outer Diameter: 1-5/8 Inch x 1-5/8 Inch x 1-3/8 Inch
-
End Type: C - Cup (Female Solder)
-
End Size: 1 1/2
-
Second End Type: C - Cup (Female Solder)
-
Second End Size: 1 1/2
-
Third End Type: C - Cup (Female Solder)
-
Third End Size: 1 1/4
-
Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
-
Overall Length: 3.64 in
-
Overall Height: 2.70 in
-
Overall Width: 1.73 in
-
Style: WT-600R
-
Mueller Description 1: 1-1/2 X 1-1/2 X 1-1/4 TEE
-
Mueller Description 2: 1-5/8X 1-5/8X 1-3/8 TEE
-
Application Type: Pressure
-
Domestic/Import: Domestic
-
End Style: Sweat
-
Fitting/Connector Type: Tee
-
Working Pressure: 700 psi
-
Method of Manufacture: Seamless
-
Industry Standards: ASME B16.22, MSS SP104
-
Dimensions: 1-5/8 x 1-5/8 x 1-3/8 Inch OD
-
Brand: Streamline®
-
Country of Origin: US
-
fitting type 1: copper
-
fitting type 2: tee
-
fitting type 3: reducing tee 1-1/2
-
size: 1-1/2" x 1-1/4"
-
Weight: 0.57 lb
