Mueller Streamline W04069 Tee Fitting 1-1/4 Inch x 1-1/4 Inch x 1 Inch

Product Description

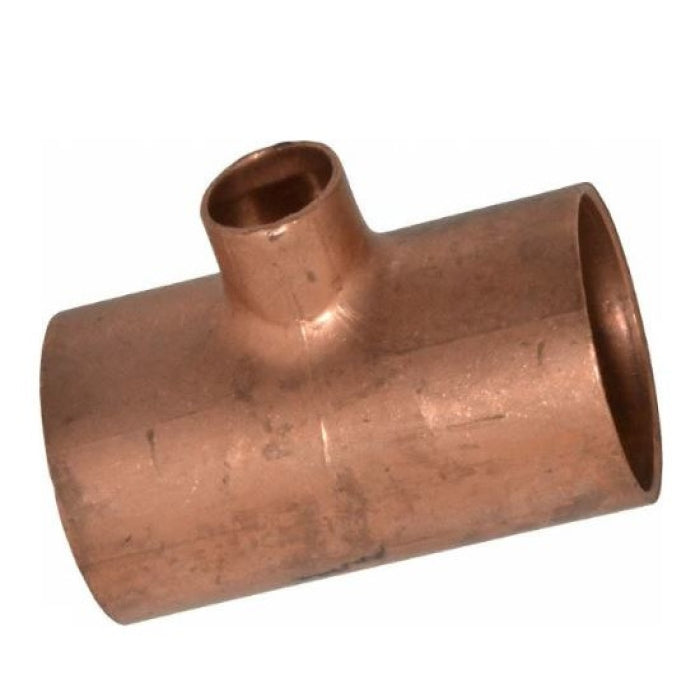

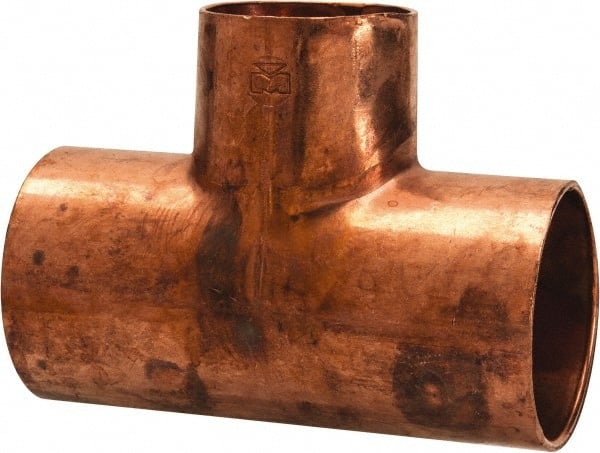

The MUELLER STREAMLINE W04069 is a reducing tee fitting with nominal size 1-1/4 Inch x 1-1/4 Inch x 1 Inch. Constructed from UNS C12200 copper with female soldered end connections. Suitable for potable water supply systems and HVACR applications. This wrot fitting has a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Lead-Free
• Female Soldered End Connection
• Suitable for Potable Water Supply System and HVACR applications

Product Highlights

Copper reducing tee fitting for plumbing and HVAC applications. Features female solder connections and is suitable for potable water systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W04069
• Country of Origin: Domestic

Technical Specifications

• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Application: Potable Water Supply System, HVACR
• End Connection: C x C x C
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Nominal Size: 1-1/4 Inch x 1-1/4 Inch x 1 Inch
• Pressure Rating: 700 PSI
• Process: Wrot
• Temperature Rating: 250 Deg F
• Type: Reducing
• Series: WT-600
• End Type: C - Cup (Female Solder)
• End Size: 1 1/4
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1 1/4
• Third End Type: C - Cup (Female Solder)
• Third End Size: 1
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 3.10 in
• Overall Height: 2.32 in
• Overall Width: 1.47 in
• Style: WT-600R
• Working Pressure: 700 psi
• Method of Manufacture: Seamless
• Industry Standards: ASME B16.22, MSS SP104
• Fitting/Connector Type: Tee
• Connection Size: 1-1/4 x 1-1/4 x 1 in
• Connection Type: Female Solder Cup
• Item Name: Reducing Tee
• Length: 3.1 in
• Model: WT-600R
• Fitting Size: 1-1/4 x 1-1/4 x 1 in
• Part #: W 04069
• Category: Pipe and Coupling
