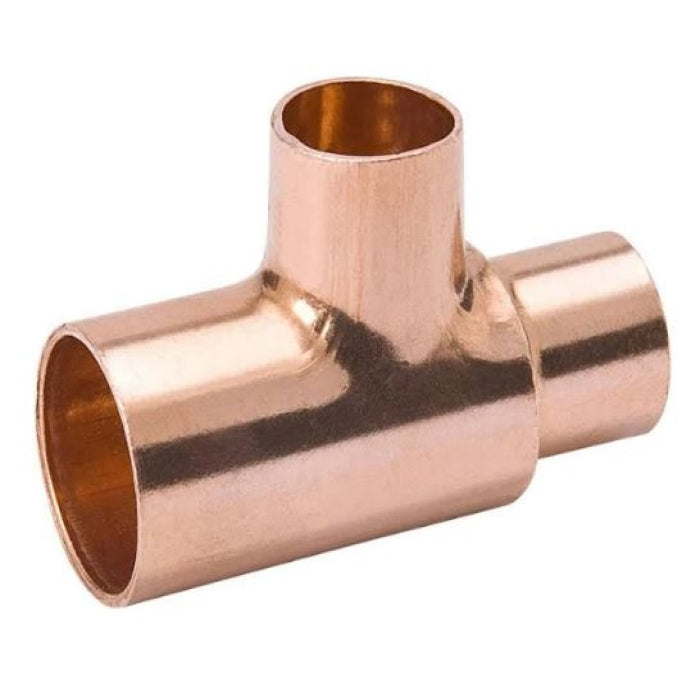

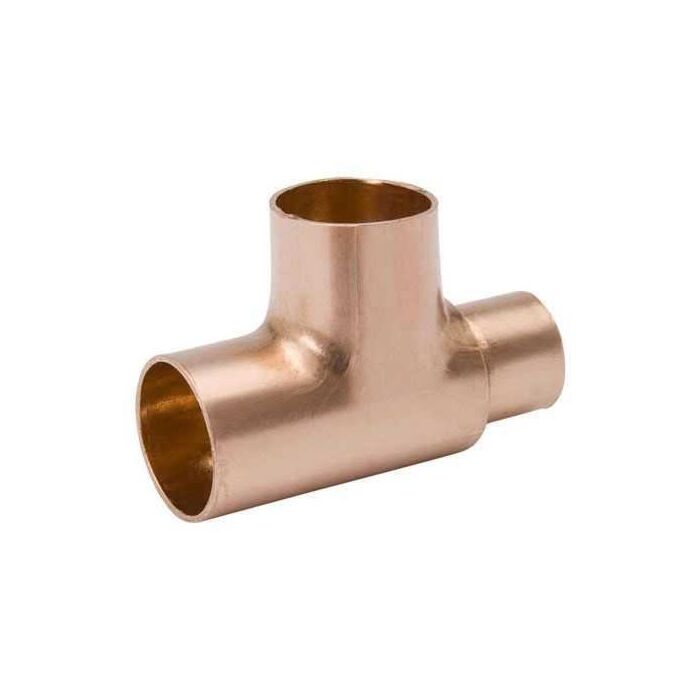

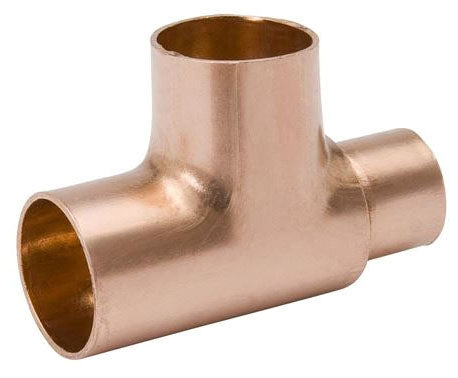

Mueller Streamline W04062 Tee Fitting 1 Inch x 1/2 Inch x 3/4 Inch

Product Description

The MUELLER STREAMLINE W04062 tee fitting is a reducing type fitting with nominal size 1 Inch x 1/2 Inch x 3/4 Inch. Constructed from UNS C12200 copper with a wrot process, it features female soldered end connections. Suitable for potable water supply systems and HVACR applications, it has a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Lead-Free
• End connection: Female Soldered x Female Soldered x Female Soldered
• Application: Potable Water Supply System, HVACR

Product Highlights

This lead-free reducing tee fitting is made from UNS C12200 copper and suitable for potable water and HVACR systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W04062
• Country of Origin: USA

Technical Specifications

• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Application: Potable Water Supply System, HVACR
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Nominal Size: 1 Inch x 1/2 Inch x 3/4 Inch
• Pressure Rating: 700 PSI
• Process: Wrot
• Temperature Rating: 250 Deg F
• Type: Reducing
• Outer Diameter: 1-1/8 Inch x 5/8 Inch x 7/8 Inch
• Series/Model: WT-600
• UNSPSC: 40183102
• Manufacturer: Mueller Industries, Inc. (Mueller Streamline Co.)
• Manufacturer Part Number: W-04062
• End Type: C - Cup (Female Solder)
• End Size: 1
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1/2
• Third End Type: C - Cup (Female Solder)
• Third End Size: 3/4
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 3.18 in
• Overall Height: 1.83 in
• Overall Width: 1.21 in
• Style: WT-600R
• Connection Size: 1 x 1/2 x 3/4 in
• Item Name: Reducing Tee
• Length: 3.18 in
