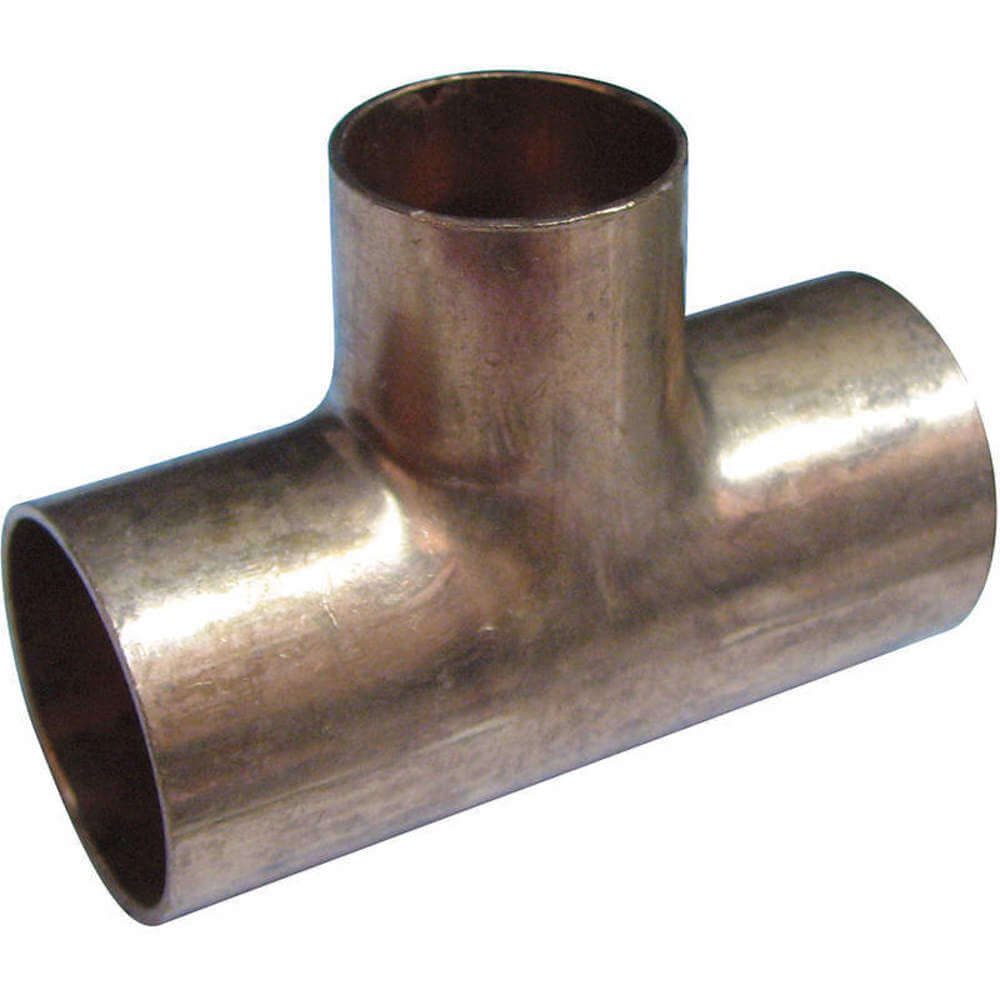

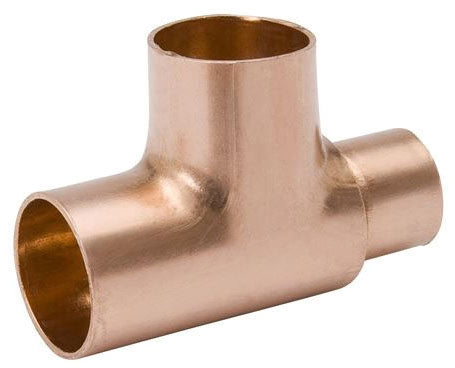

Mueller Streamline W04034 Tee Fitting 3/4 Inch x 3/4 Inch x 3/8 Inch

Product Description

The MUELLER STREAMLINE W04034 Tee Fitting is a reducing type fitting with nominal size 3/4 Inch x 3/4 Inch x 3/8 Inch. Constructed from UNS C12200 copper with a wrot process, it is suitable for potable water and HVACR applications. It features female soldered end connections and complies with industry standards.

• Constructed from UNS C12200 copper
• Features female soldered end connections
• Suitable for potable water and HVACR applications

Product Highlights

This lead-free reducing tee fitting is designed for plumbing and HVACR systems, ensuring reliable performance and adherence to industry standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W04034
• Country of Origin: US

Technical Specifications

• Type: Reducing
• Nominal Size: 3/4 Inch x 3/4 Inch x 3/8 Inch
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Additional Information: Lead-Free; Outer Diameter 7/8 Inch x 7/8 Inch x 1/2 Inch
• UNSPSC Code: 40183102
• CATALOG NUMBER: W04034
• Manufacturer Name: Mueller Streamline
• Manufacturer Part Number: W04034
• Series/Model: WT-600
• Outer Diameter: 7/8 Inch x 7/8 Inch x 1/2 Inch
• End Type: C - Cup (Female Solder)
• End Size: 3/4
• Second End Type: C - Cup (Female Solder)
• Second End Size: 3/4
• Third End Type: C - Cup (Female Solder)
• Third End Size: 3/8
• Overall Length: 2.04 in
• Overall Height: 1.35 in
• Overall Width: 0.94 in
• Style: WT-600R
• Fitting/Connector Type: Tee
• Domestic/Import: Domestic
• Max. Pressure: 582 psi
• Outside Dia.: 7/8" x 7/8" x 1/2"
• Size: 3/4" x 3/4" x 3/8"
• Specific Pipe Fitting Shape: Reducing Tee
• Temp. Range: -20°F to +400°F
