Mueller Streamline W02626 Elbow Fitting 90 Degree 1/2 Inch

Product Description

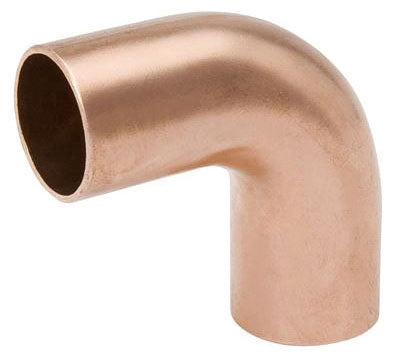

The MUELLER STREAMLINE W02626 elbow fitting is a straight, short radius fitting with a 90-degree angle. Constructed from UNS C12200 copper, it adheres to ASTM B75/B88/B280 material specifications. This wrot fitting is suitable for potable water supply systems and HVACR applications, with a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Features a 90-degree angle for directional changes in piping.
• Constructed from UNS C12200 copper for durability.
• Suitable for potable water and HVACR systems.

Product Highlights

This lead-free elbow fitting is ideal for plumbing and HVACR applications requiring a reliable and code-compliant connection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W02626
• Country of Origin: US

Technical Specifications

• Angle: 90 Degree
• Application: Potable Water Supply System, HVACR
• End Connection: Male Soldered x Male Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Pressure Rating: 700 PSI
• Process: Wrot
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• Temperature Rating: 250 Deg F
• Type: Straight, Short Radius
• Outer Diameter: 5/8 Inch
• End Type: FTG - Fitting (Male Solder)
• End Size: 1/2 in
• Second End Type: FTG - Fitting (Male Solder)
• Second End Size: 1/2 in
• Overall Length: 1.47 in
• Overall Height: 1.47 in
• Overall Width: 0.62 in
• Tube Size: 1/2"
• Outside Dia.: 5/8"
• Max. Pressure: 722 psi@100 Degrees F
• Temp. Range: -20 Degrees to 400 Degrees F
• Fitting Side A Copper Tube Size: 1/2"
• Fitting Side A Tube Outer Dia.: 5/8"
• Fitting Side B Copper Tube Size: 1/2"
• Fitting Side B Tube Outer Dia.: 5/8"
