Mueller Streamline W02078 Elbow Fitting 90 Degree 2 Inch x 1-1/2 Inch

Product Description

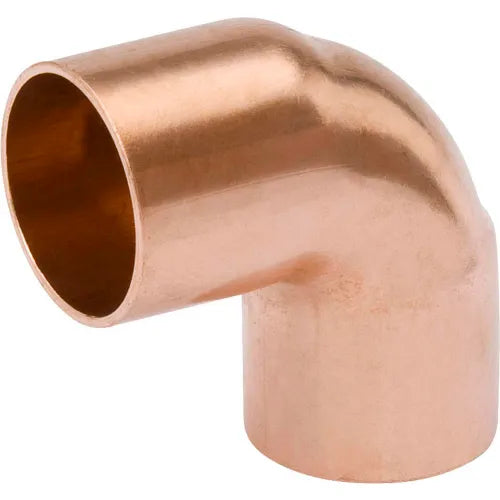

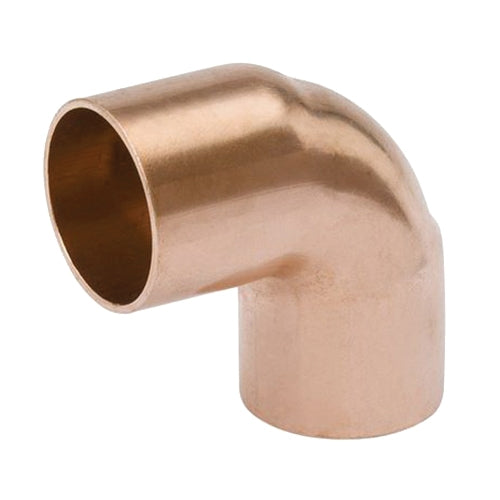

The MUELLER STREAMLINE W02078 elbow fitting is a short radius, reducing type with a 90-degree angle. Constructed from UNS C12200 copper, it features female soldered end connections. This fitting is suitable for potable water supply systems and HVACR applications. It has a pressure rating of 700 PSI at 250 Deg F.

• Lead-Free
• Made in USA
• Female Soldered x Female Soldered End Connection

Product Highlights

Ideal for plumbing and HVAC systems, this copper elbow ensures reliable connections and meets industry standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W02078
• Country of Origin: USA

Technical Specifications

• Angle: 90 Degree
• Applicable Standard: NSF 61G, UL (Canada and US), ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, MSS SP-104
• Application: Potable Water Supply System, HVACR
• End Connection: Female Soldered x Female Soldered
• Material: Copper
• Material Specification: ASTM B75
• Pressure Rating: 700 PSI at 250 Deg F
• Process: Wrot
• Size A: 2 Inch
• Size B: 1-1/2 Inch
• Type: Short Radius, Reducing
• UNSPSC Code: 40183101
• Additional Information: Lead-Free
• Manufacturer Name: Mueller Streamline
• Manufacturer Part Number: W-02078
• Series/Model: WE-500
• End Type: C - Cup (Female Solder)
• End Size: 1 1/2
• Second End Type: C - Cup (Female Solder)
• Second End Size: 2
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 3.62 in
• Overall Height: 3.62 in
• Overall Width: 3.62 in
• Style: WE-500R
• Mueller Description 1: 2 C X 1-1/2 C SR 90 ELL
• Mueller Description 2: 2-1/8 X 1-5/8 OD 90 ELL
• Connection: Copper ga
• Size: 2 x 1-1/2
• Point Of Origin: Domestic
• Fitting Type: 90 Degree Short Radius Elbow
• Brand: Mueller
• Domestic/Import: Domestic
• End Style: Sweat
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 2 x 1-1/2 In
