Mueller Streamline W02049 Elbow Fitting 90 Degree

Product Description

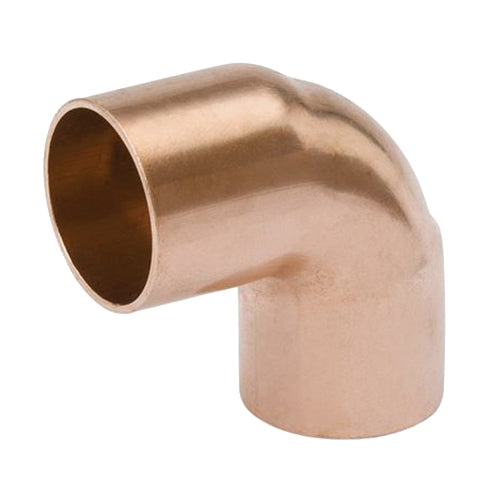

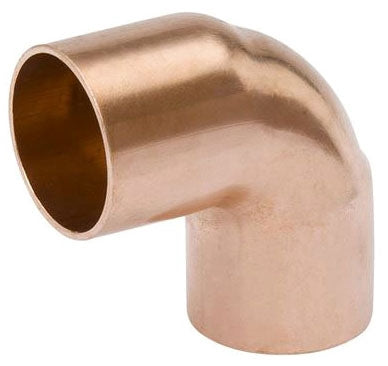

The MUELLER STREAMLINE W02049 elbow fitting is a reducing, short radius type with a 90-degree angle. Constructed from UNS C12200 copper, it meets material specifications ASTM B75/B88/B280. Suitable for potable water supply systems and HVACR applications, it has a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Lead-Free
• End connection is Female Soldered x Female Soldered
• Meets applicable standards UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G

Product Highlights

This lead-free elbow fitting is ideal for plumbing and HVACR applications requiring a reliable, corrosion-resistant connection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W02049
• Country of Origin: Domestic

Technical Specifications

• Angle: 90 Degree
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Application: Potable Water Supply System, HVACR
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Pressure Rating: 700 PSI
• Process: Wrot
• Size A: 1 Inch
• Size B: 3/4 Inch
• Temperature Rating: 250 Deg F
• Type: Reducing, Short Radius
• Additional Information: Lead-Free; Outer Diameter 1-1/8 Inch x 7/8 Inch
• Manufacturer Name: Mueller Streamline
• Manufacturer Part Number: W02049
• Series: WE-500
• End Type: C - Cup (Female Solder)
• End Size: 3/4
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 2.24 in
• Overall Height: 2.41 in
• Overall Width: 1.13 in
• Style: WE-500R
• Application Type: Pressure
• Domestic/Import: Domestic
• End Style: Sweat
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1 x 3/4 In
• Working Pressure: 700 psi
• Method of Manufacture: Seamless
• Industry Standards: ASME B16.22, MSS SP104
• Dimensions: 1-1/8 x 7/8 Inch OD
